AT-VLS-101 Multifunctionele CO2 sensor en regelaar met relaisuitgangen

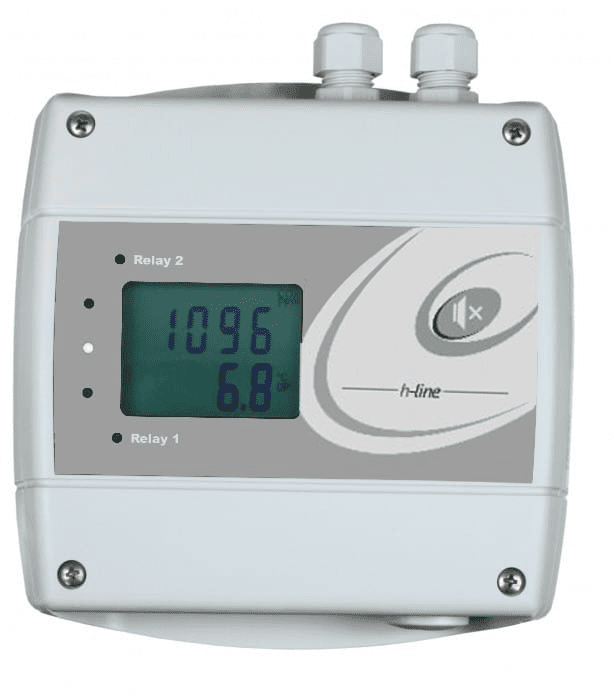

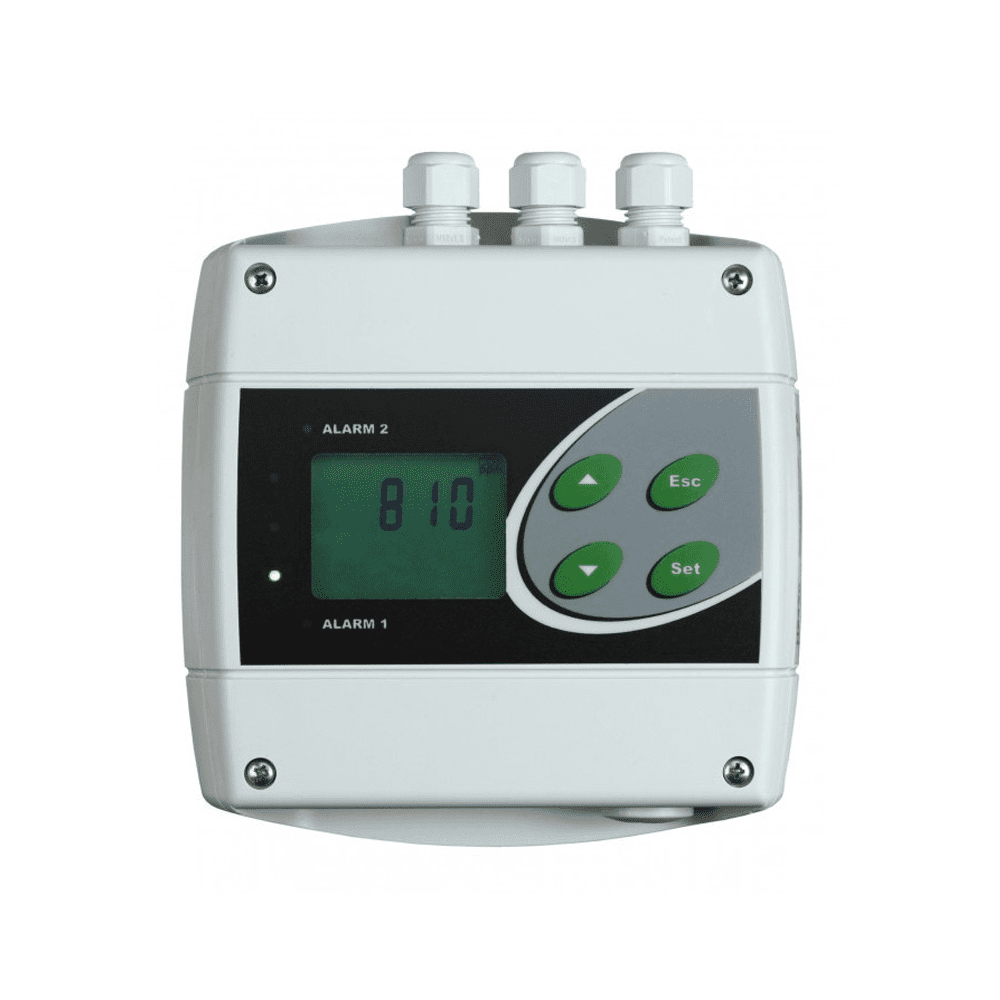

Picture of AT-VLS-101 Multifunctionele CO2 sensor en regelaar met relaisuitgangen
Picture of AT-VLS-101 Multifunctionele CO2 sensor en regelaar met relaisuitgangen
Picture of AT-VLS-101 Multifunctionele CO2 sensor en regelaar met relaisuitgangen
Picture of AT-VLS-101 Multifunctionele CO2 sensor en regelaar met relaisuitgangen
Picture of AT-VLS-101 Multifunctionele CO2 sensor en regelaar met relaisuitgangen
Picture of AT-VLS-101 Multifunctionele CO2 sensor en regelaar met relaisuitgangen

AT-VLS-101 Multifunctionele CO2 sensor en regelaar met relaisuitgangen

SKU AT-VLS-101
  • Uitgevoerd met hoogwaardige “dual-beam” CO2-opnemer (NDIR)
  • Langetermijn stabiliteit
  • Voorzien van zelfkalibrerend mechanisme
  • Met toetsbediening en helder LCD-scherm
  • Sensorelementen voor optioneel temperatuur en RV
Compare
Questions?
Email a friend
This product is sold out.
Download brochure
ATAL brochure CO2 sensoren en regelaars
ATAL brochure CO2 sensoren en regelaars
ATAL user manual AT-VLS-101DR
ATAL user manual AT-VLS-101DR
ATAL Quickstart AT-VLS-101DR
ATAL Quickstart AT-VLS-101DR
ATAL user manual AT-VLS-101DRS
ATAL user manual AT-VLS-101DRS
ATAL brochure ethernetprobes
ATAL brochure ethernetprobes
ATAL user manual AT-VLS-101DE
ATAL user manual AT-VLS-101DE
ATAL Quickstart AT-VLS-101DE
ATAL Quickstart AT-VLS-101DE
  • DescriptionDe CO2-sensoren uit de ATAL VLS-serie zijn multifunctionele sensoren/regelaars die voor een veelvoud van toepassingen kunnen worden ingezet. Naast de meting van het CO2-niveau, eventueel gecombineerd met temperatuur en relatieve vochtigheid, kunnen deze sensoren ook zorgen voor aansturing of alar...
  • Features
  • Documents
Close

De CO2-sensoren uit de ATAL VLS-serie zijn multifunctionele sensoren/regelaars die voor een veelvoud van toepassingen kunnen worden ingezet. Naast de meting van het CO2-niveau, eventueel gecombineerd met temperatuur en relatieve vochtigheid, kunnen deze sensoren ook zorgen voor aansturing of alarmering via de ingebouwde relais (2x). De sensoren uit de VLS-serie zijn robuust vormgegeven en zijn daardoor bij uitstek geschikt voor HVAC-meet- & regeltoepassingen, voor applicaties in de tuinbouw of in een industriële- of productieomgeving. ATAL levert de sensoren met een Modbus RS485-commu nicatie interface of Ethernet-aansluiting. De CO2-sensoren uit de ATAL VLS-serie worden standaard geleverd met een kalibratiecertificaat.


Soort instrument
  • Lokale indicator
  • Schakelaar
  • Transmitter
Gemeten waarden CO2
Voedingstype 9-30 Vdc
Nauwkeurigheid CO2 ± (50 ppm +2% na aflezing) bij 25°C en 1013hPa
Beschermingsgraad IP30
Bereik CO2
  • 0 tot 2.000 ppm
  • 0 tot 10.000 ppm (optioneel)
Alarm Akoestisch
Displaytype LCD
Bedrijfscondities Temp: -30°C tot +60°C
Afmetingen 136mm x 150mm x 45mm
Gewicht 360g
Resolutie 1 ppm
Verbruik 1 W
Voeding 24 Vdc
Digitale communicatie
  • Modbus RTU (RS485)
  • Modbus TCP/IP (Ethernet)
  • SNMP
  • SOAP
Uitgang RS485
ATAL brochure CO2 sensoren en regelaars
ATAL user manual AT-VLS-101DR
ATAL Quickstart AT-VLS-101DR
ATAL user manual AT-VLS-101DRS
ATAL brochure ethernetprobes
ATAL user manual AT-VLS-101DE
ATAL Quickstart AT-VLS-101DE
