ATE-1U-2TE

ATE Series - Ethernet-Based Measurement Units with Display

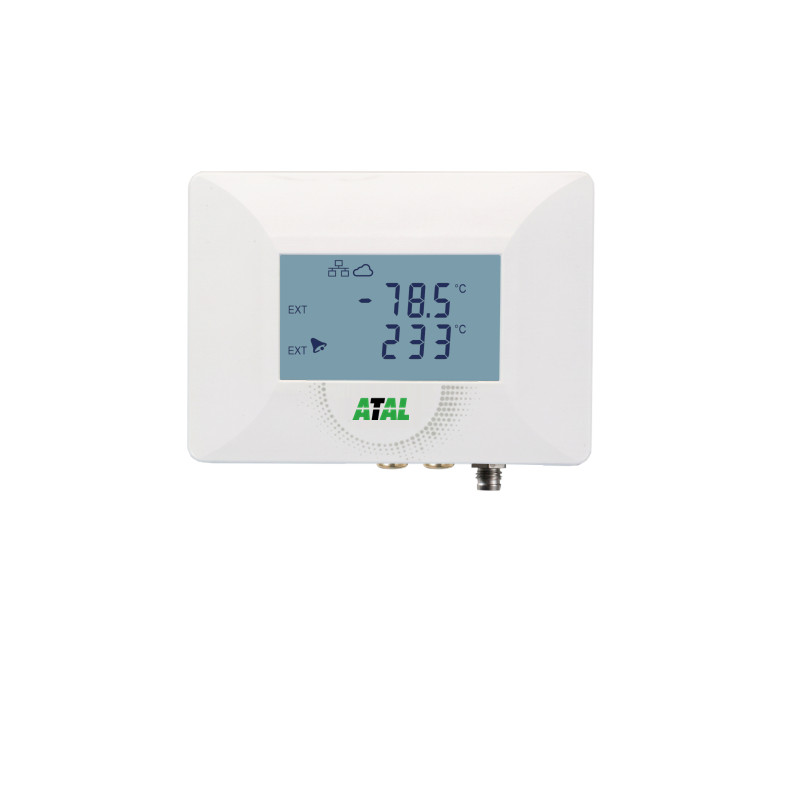

The ATE-1U-2TE is a versatile Ethernet-based monitoring unit featuring one universal input for a temperature/relative humidity (T/RH) or CO₂ sensor and two Pt1000 temperature channels. It is ideally suited for applications where both ambient climate conditions and process temperatures need to be monitored simultaneously.

The ATE series represents a new generation of Ethernet-based measurement units designed for accurate monitoring of temperature, relative humidity, and derived humidity parameters. With extensive network connectivity and support for protocols such as Modbus TCP, SNMP (v1/v2c/v3), HTTP(S), HTTP GET (JSON/XML), and IPv4/IPv6, the devices can be seamlessly integrated into building management systems (BMS), SCADA environments, and cloud platforms such as OnlineSensor.

These compact measurement units combine high measurement accuracy with local indication through a backlit LCD display, LED status indication, and an audible alarm. In addition to temperature and relative humidity monitoring, the devices calculate important climate parameters including dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy, Humidex, and heat index.

Powered via Power over Ethernet (PoE) or 5–24 VDC, and equipped with integrated memory, advanced alarm functions, and modern cybersecurity features, the ATE series provides a reliable solution for applications in data centers, laboratories, cleanrooms, industrial environments, commercial buildings, and technical facilities.
