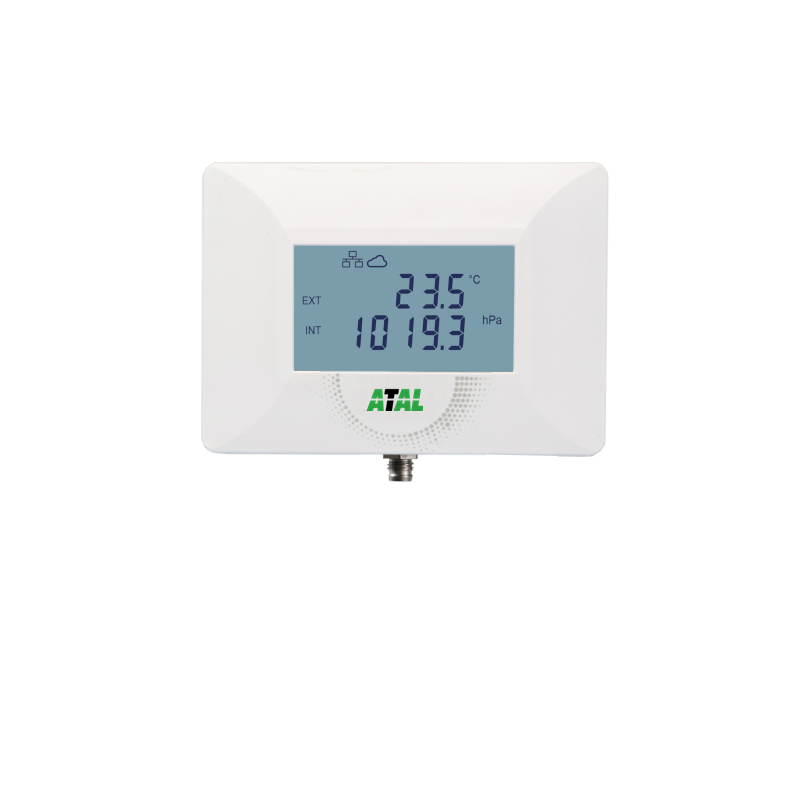

ATE-1U-P

ATE series - Ethernet-based measuring units with display

The ATE-1U-P is a versatile Ethernet measuring unit with a universal input for Te/RH or CO₂ sensors and an integrated air pressure sensor. Perfect for comprehensive environmental monitoring within critical applications.

The ATE series represents a new generation of Ethernet-based measuring units for accurate monitoring of temperature, relative humidity, and derived moisture parameters. Thanks to extensive network connectivity and support for protocols such as Modbus TCP, SNMP (v1/2/3), HTTP(S), HTTP GET (JSON, XML), and IPv4/IPv6, the sensors can be easily integrated into building management systems, SCADA environments, and cloud platforms such as OnlineSensor.

The compact measuring units combine high measurement accuracy with local signaling via an illuminated LCD display, LED indication, and an audible alarm. In addition to temperature and relative humidity, the sensors also calculate important climate parameters such as dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy, Humidex, and heat index.

With power supply via PoE or 5–24 VDC, integrated memory, advanced alarm functions, and modern cybersecurity, the ATE series is the ideal solution for applications in data centers, laboratories, cleanrooms, industry, utilities, and technical rooms.
