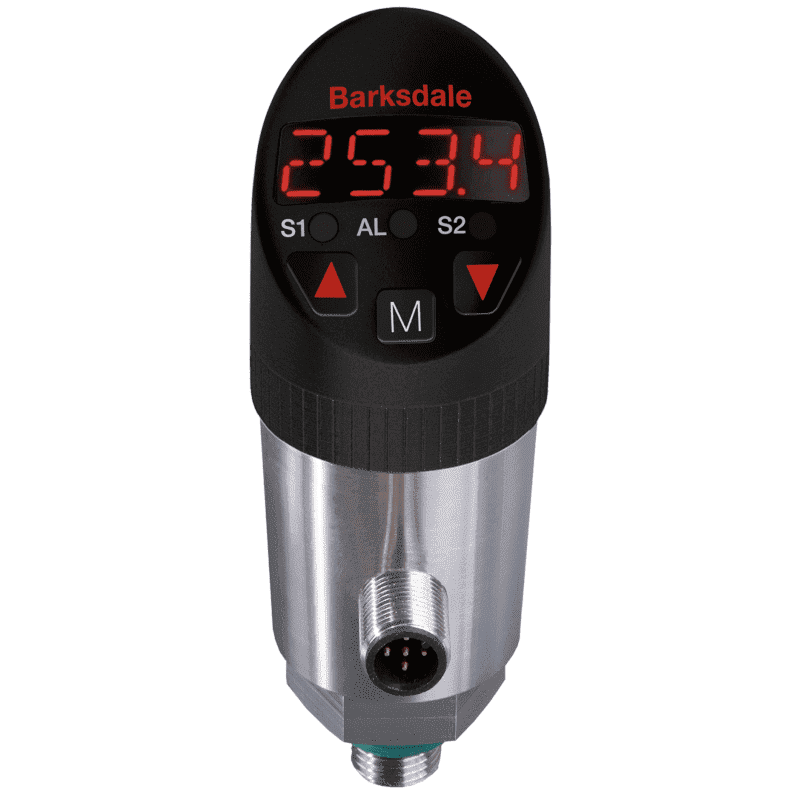

Barksdale electronic pressure switch series BPS3000

Picture of Barksdale electronic pressure switch series BPS3000, Picture 3

Picture of Barksdale electronic pressure switch series BPS3000, Picture 4

Picture of Barksdale electronic pressure switch series BPS3000

Artikel

Model

Bereik / omschrijving

Prijs

2021345

BPS3-1GVM-0050B

Pressure switch 0...50 bar, 2x PNP

2021346

BPS3-1GVM-100B

Pressure switch 0...100 bar, 2x PNP

2021344

BPS3-1GVM-10B

Pressure switch 0...10 bar, 2x PNP

2021347

BPS3-1GVM-200B

Pressure switch 0...200 bar, 2x PNP

2021348

BPS3-1GVM-400B

Pressure switch 0...400 bar, 2x PNP

2021349

BPS3-1GVM-600B

Pressure switch 0...600 bar, 2x PNP

2021352

BPS3-4GVM-100B

Pressure switch 0...100 bar, 2x PNP + 4-20 mA

2021350

BPS3-4GVM-10B

Pressure switch 0...10 bar, 2x PNP + 4-20 mA

2021353

BPS3-4GVM-200B

Pressure switch 0...200 bar, 2x PNP + 4-20 mA

2021354

BPS3-4GVM-400B

Pressure switch 0...400 bar, 2x PNP + 4-20 mA

2021351

BPS3-4GVM-50B

Pressure switch 0...50 bar, 2x PNP + 4-20 mA

2021355

BPS3-4GVM-600BP

Pressure switch 0...600 bar, 2x PNP + 4-20 mA

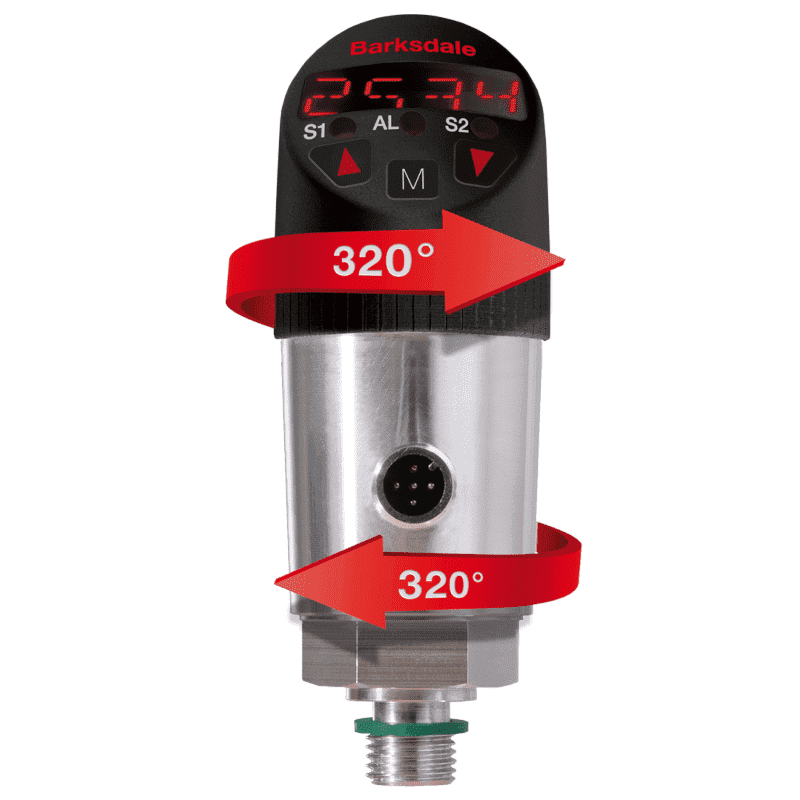

The Barksdale BPS3000 series is an electronic pressure switch with optional transmitter output. The pressure switch is equipped with a LED display and is fully rotatable in the ideal position. The display and electrical connection can be rotated separately. In addition to the standard models the BPS300 can also be equipped out with other process connections, analog output or EPDM gaskets.

Medium	Compatible gases Compatible liquids
Output	4-20 mA 0-10 V
Power supply	24 Vdc
Display	LED
Housing	IP67
Process connection	1/4" BSPm 1/2" BSPm 1/4" NPTm 7/16 UNF 1/2" NPTm
Electrical connection	M12 4-pins M12 5-pins
Contact	1x PNP 2x PNP
Measuring principle	Piëzo
Range - pressure	< 10 bar < 50 bar < 100 bar < 600 bar
Digital communication	IO-Link

Write a review

There are no reviews yet

Fiche technique FR
Fiche Technique Barksdale BPS3000.pdf

Datasheet EN
Datasheet Barksdale BPS3000.pdf
