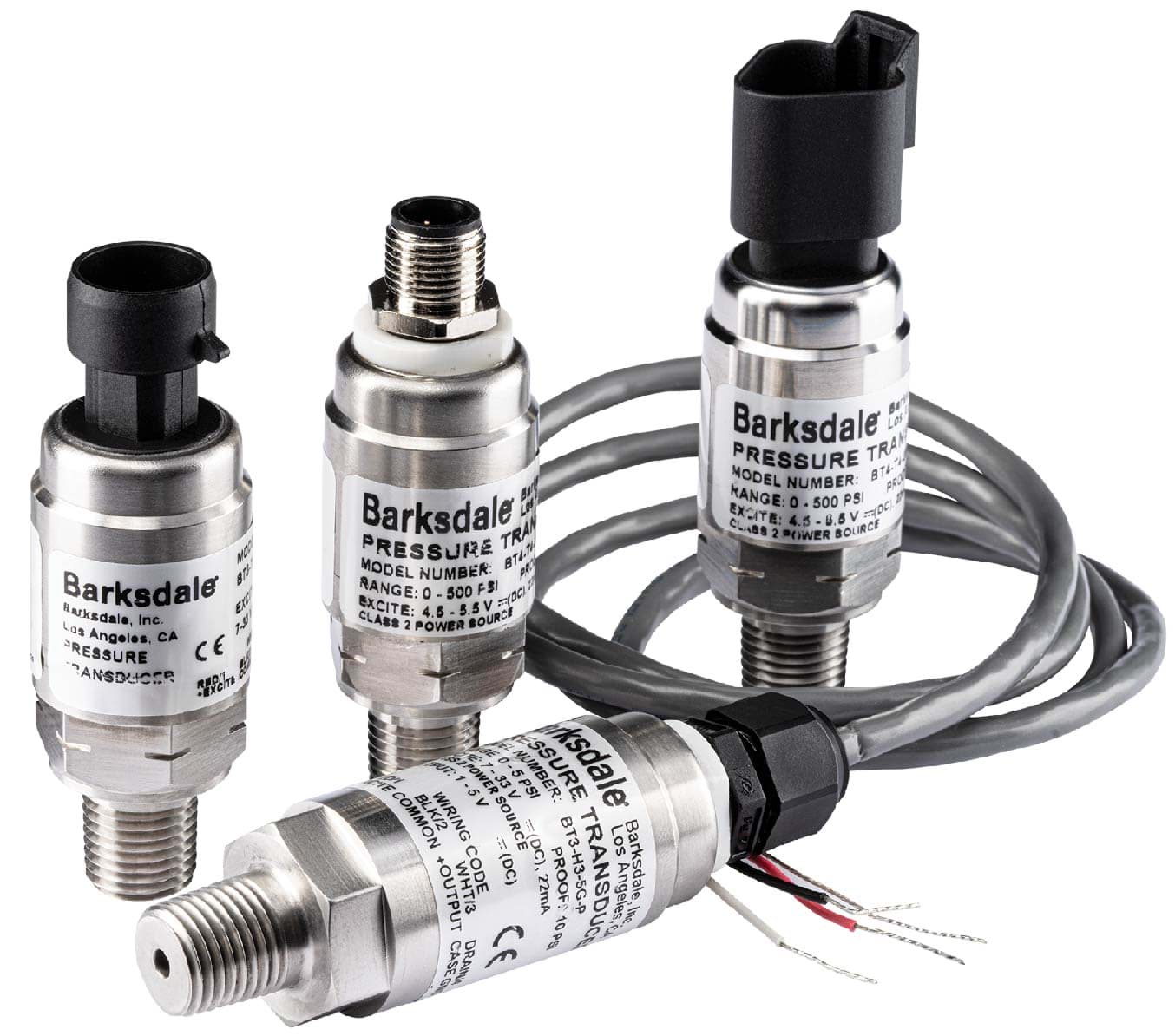

Our manufacturer, Barksdale, has developed innovative solutions for pressure sensors used in hydrogen applications, including the hydrogen pressure transducer BHyT-BoT series.
- Zero Leakage thanks to seal-free technology.
- Advanced sensor signal conditioning ASIC ensures high accuracy of ±0.25% and ±1% zero-point error.
- Suitable for a wide temperature range from -40°C to +100°C, with waterproof IP67 protection and compatibility with demanding media such as H₂ and O₂.
- Excellent EMI-EMC protection according to IEC standards and thermally compensated sensors ensure high accuracy across wide temperature ranges, minimizing thermal errors in sensitive components.
- Can measure pressure ranges from 0-700 bar (0-10,000 psi).
The BHyT-BoT series is highly suitable for:
- Hydrogen fuel cells
- Electrolysers
