Dwyer U-tube liquid column manometer series Flex-Tube

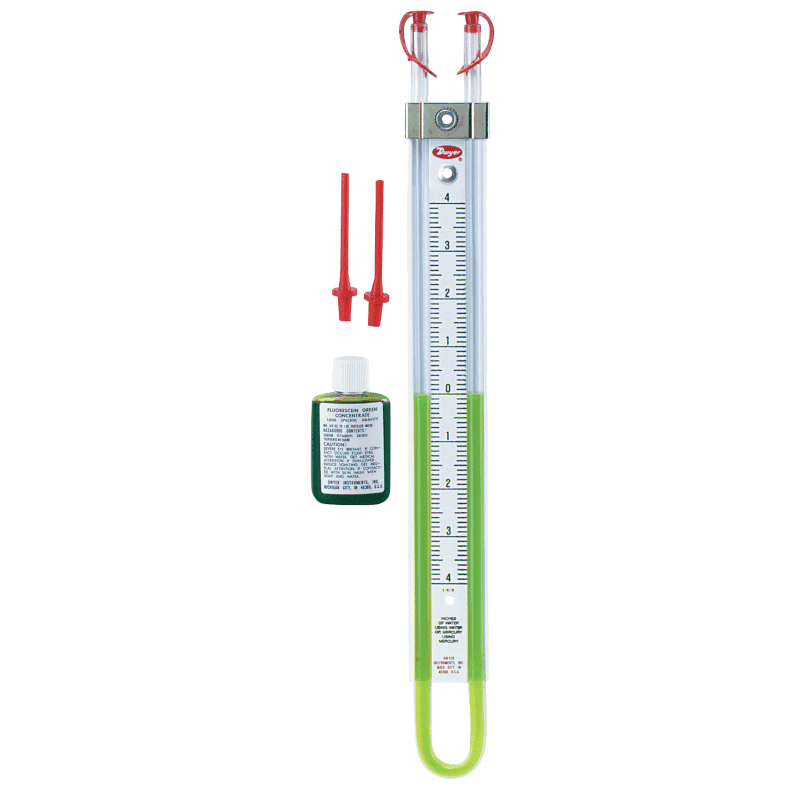

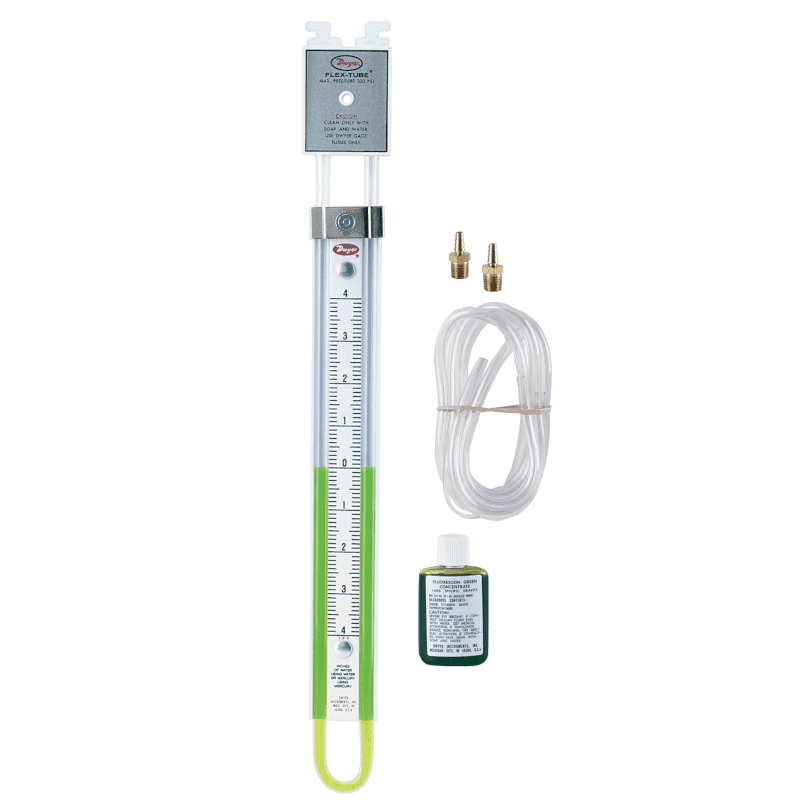

Picture of Dwyer U-tube liquid column manometer series Flex-Tube, Picture 3

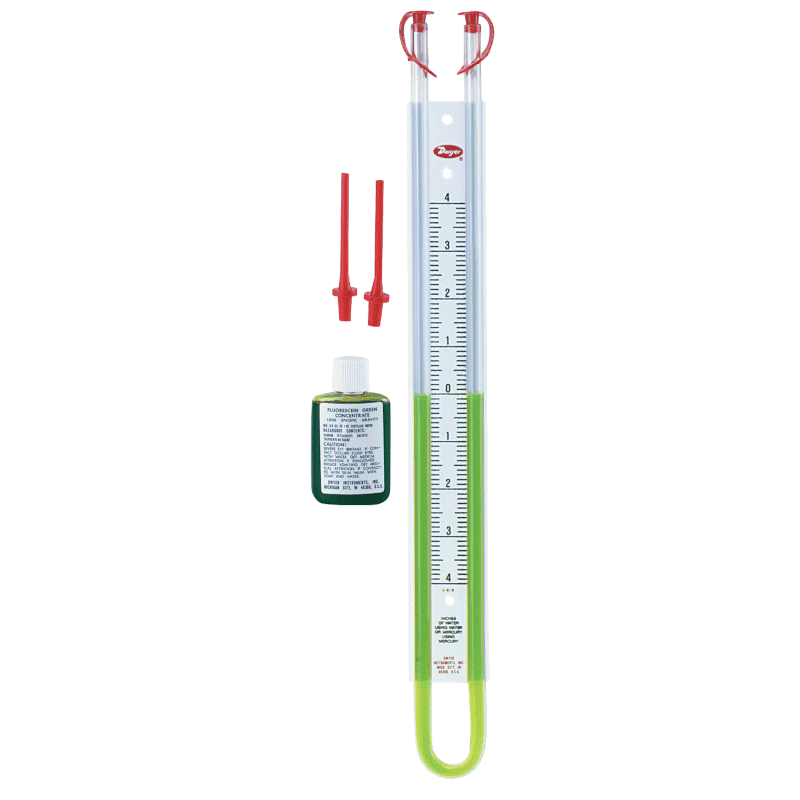

Picture of Dwyer U-tube liquid column manometer series Flex-Tube

Artikel

Model

Bereik / omschrijving

Prijs

2001550

1221-M200W/M

range 100 to 0 to 100 mm wc

2001546

1221-M300W/M

Range 150 to 150 mm w.c.

2001551

1221-M400W/M

range 200 to 0 to 200 mm w.c.

2001547

1221-M600W/M

range -300 to 300 mm w.c.

2001548

1221-M1000W/M

range 500 to 0 to 500 mm w.c.

2017485

1222-M200W/M

range 100 to 0 to 100 mm w.c. with mounting clips

2016705

1222-M300W/M

range 150 to 0 to 150 mm w.c. with mounting clips

2017484

1222-M400W/M

range 200 to 0 to 200 mm w.c. with mounting clips

2016056

1222-M600W/M

range -300 to 300 mm w.c. with mounting clips

2009632

1222-M1000W/M

range 500 to 0 to 500 mm w.c. with mounting clips

These inexpensive manometers measure positive, negative and differential pressures. Dwyer Flex-Tube U-Tube Manometers combine the inherent accuracy of the simple "U" Tube with the durability of tough, long-lasting plastic construction. Series 1221 Manometer, the simplest, lowest cost basic U-gage. Series 1222 Manometer, alll the features of the 1221 plus magnetic clips. Series 1223 Manometer, the finest U-gage for either portable or stationary use.

Medium	Air
Power supply	Not applicable
Process connection	5 mm tubing
Measuring principle	Liquid column

Write a review

There are no reviews yet

Datasheet EN
Datasheet Dwyer 1221-1222-1223.pdf
