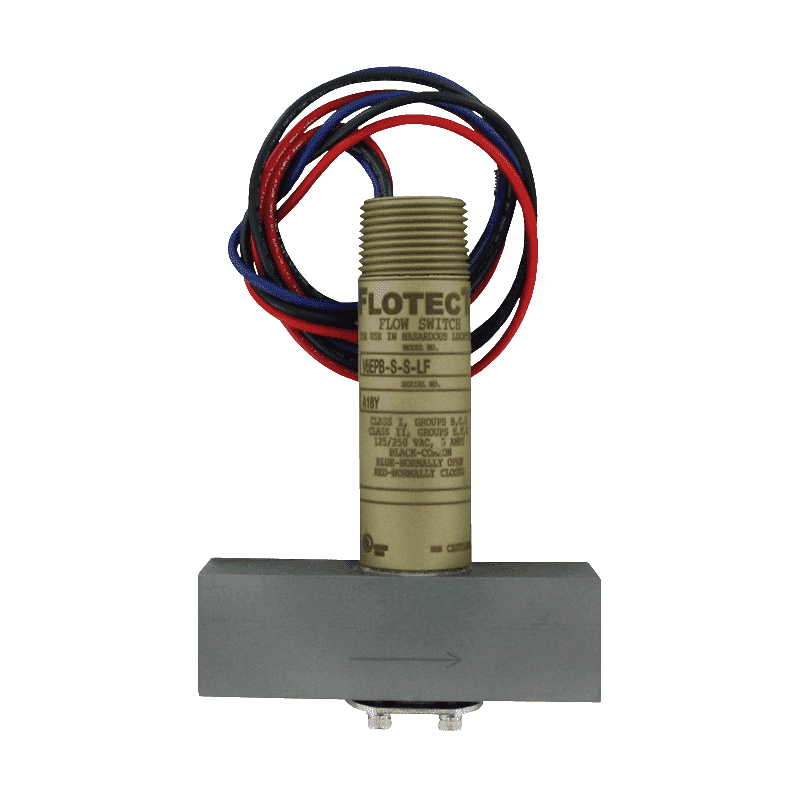

Surprisingly compact, the series V6 Flotect Flow Switch is engineered to specifically monitor liquid, gas, or airflows. Operation is simple and dependable with no mechanical linkage as the flow switch is magnetically actuated. Easy installation, simply insert the tee in the pipline and complete electrical connections. Tees are available from 1/2? to 2?, with bushings added the unit is easily adapted to 1/4? and 3/8? piping. Main applications are: Protection of pumps, motors and other equipment against low or no flow.
Features
Explosion proof
ATEX
CSA
IECex
UL
Measuring principle
Vaan
Medium
Compatibele gassen
Compatibele vloeistoffen
Voeding
Niet van toepassing
Behuizing
IP65
Leidingdiameter
1/2" (DN15)
3/4" (DN20)
1" (DN25)
1-1/4" (DN32)
1-1/2" (DN40)
2" (DN50)
Contact
SPDT
Procesaansluiting
1/2" NPTm
Certificeringen
ATEX Ex d
CSA
IECex Ex d
UL
Documents
