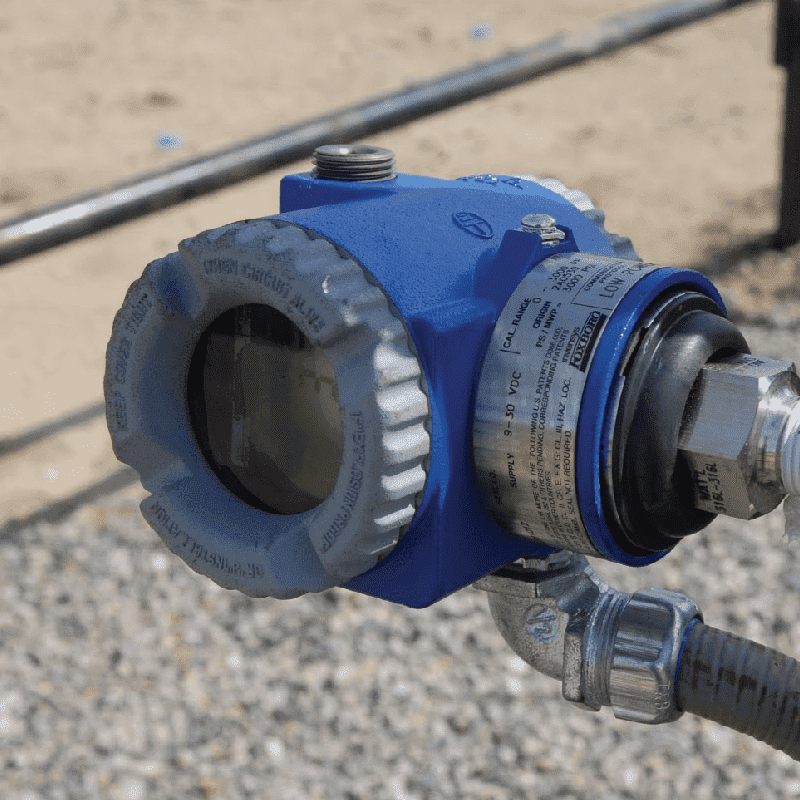

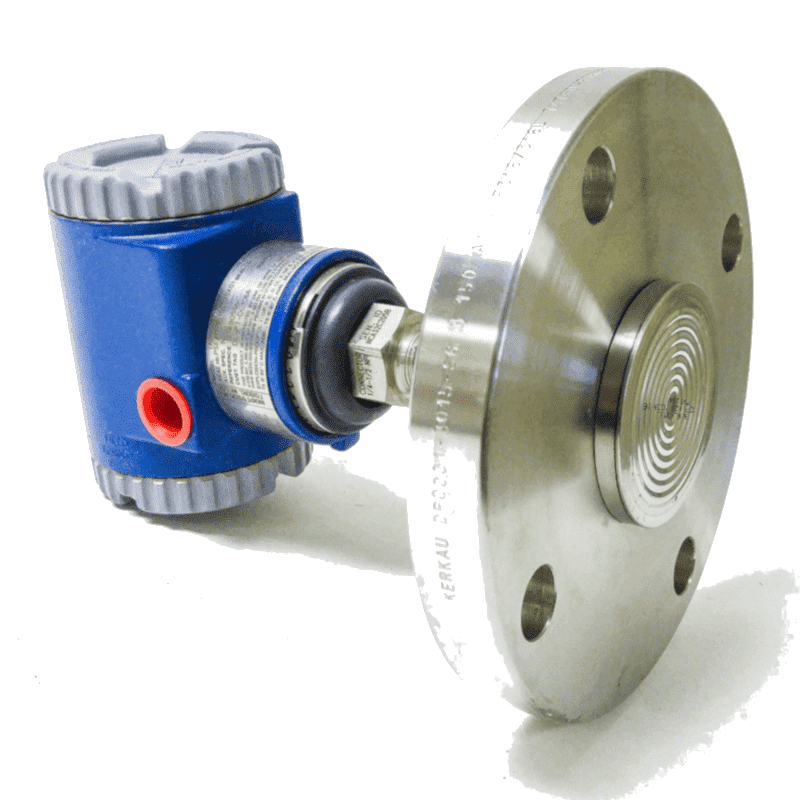

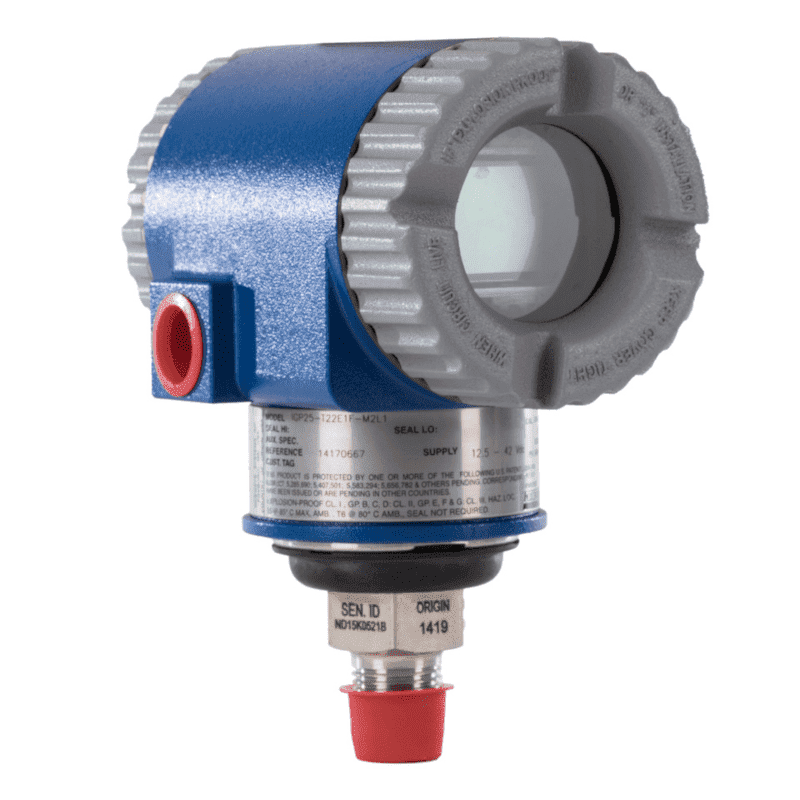

The Foxboro IAP10 series is a compact and robust absolute pressure transmitter for direct process mounting. The IAP10 series is available in different measuring ranges of 2.1 bar, 21 bar and 210 bar absolute pressure. As signal output you can choose 1-5V, 4-20 mA, Hart, Foudation Fielbus and FoxCom. The IAP10 series is available in a safe area version or explosion-proof version according to ATEX, IECex, FM or CSA.
| Medium |
- Compatibele gassen
- Compatibele vloeistoffen
|
| Uitgang |
|
| Certificeringen |
- IECex Ex i
- IECex Ex d
- CSA
- FM
- ATEX Ex i
- ATEX Ex d
- ATEX Ex nL
|
| Meetprincipe |
Piëzo
|
| Behuizing |
IP66
|
| Procesaansluiting |
|
| Digitale communicatie |
- Hart
- Foundation Fieldbus
- Foxcom
|
| Voeding |
24 Vdc
|
