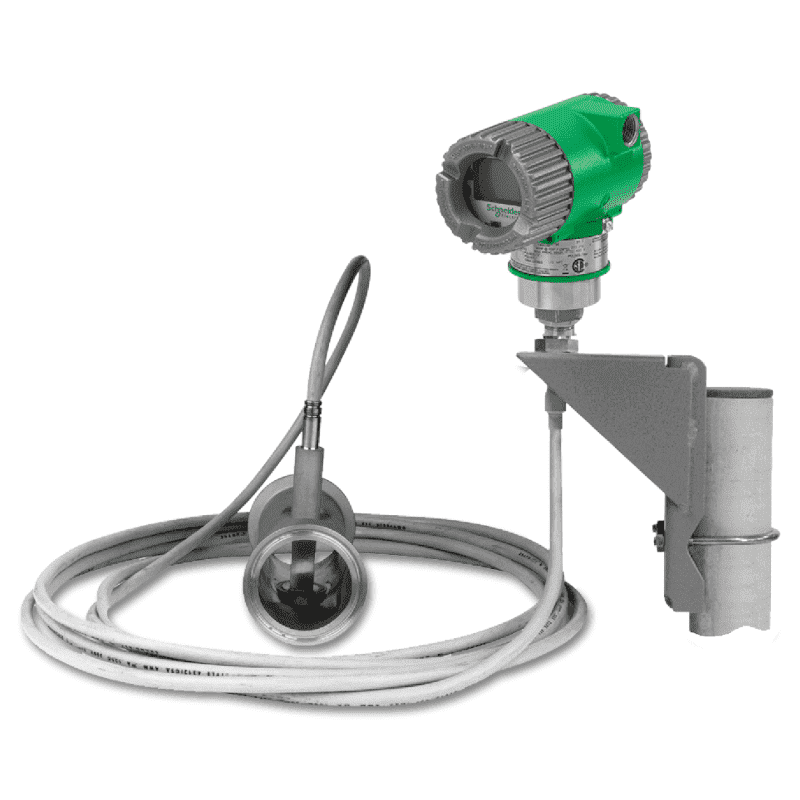

The 84CS series vortex mass flow meter with sanitary connection for the pharmaceutical and food industries is an addition to the Schneider Electric (formerly Foxboro) family of intelligent, high-performance vortex flow meters. The 84CS series is available with 4 to 20 mA, HART7, and/or Modbus communication and can optionally be equipped with temperature com...

The Foxboro Model 11GM Transmitters accurately measure gauge pressure and transmit a proportional pneumatic output signal to receivers which may be several hundred meters or yards away.

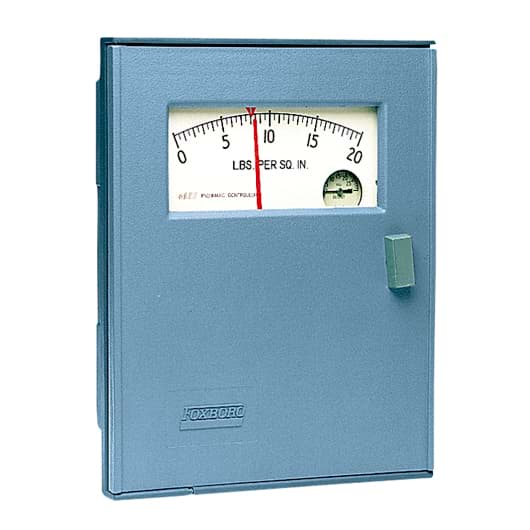

The Foxboro 43AP pneumatic controller is a versatile process instrument controller that can be used to control pressure, temperature, flow and level. As with all process controllers, the Foxboro 43AP pneumatic controller continuously detects the difference between a process measurement and its set point.

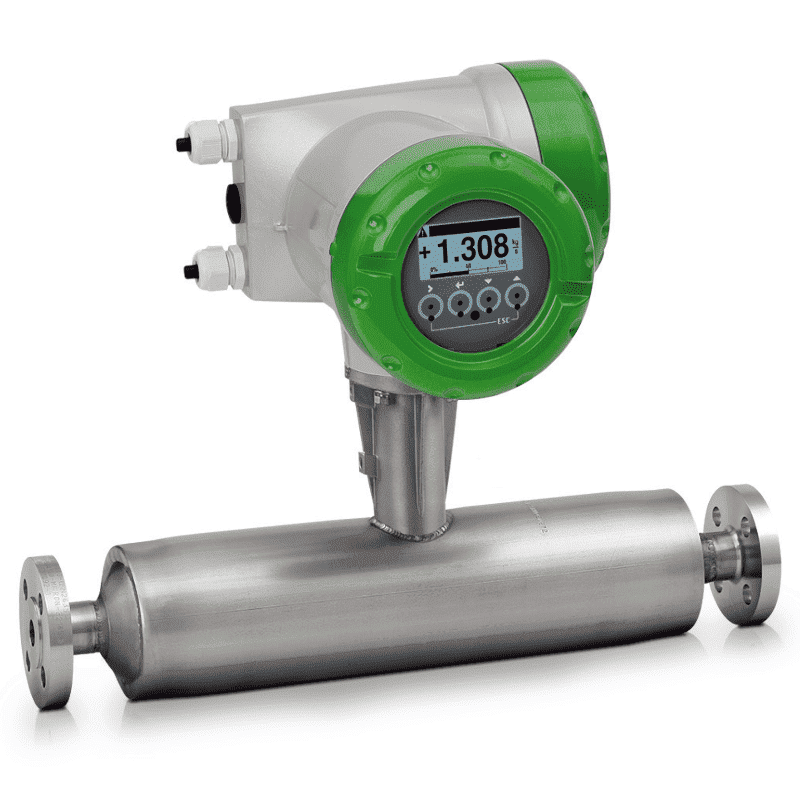

The CFS300A is the cost effective solution for accurate measurement for a variety of applications. The CFS300A reliably measures mass, density, volume, temperature, volume concentration or solid content. Dual-straight tube with optimized flow splitter, for general purpose applications and process control. End connections available for ½” (DN15) to 4” (DN100).

The IAP05S series is a budget-friendly pressure transmitter within the Schneider Electric range and is standard SIL2 certified. The IAP05S measures an absolute pressure with an accuracy of 0.075% of the chosen measuring range, varying from 50 kPa to 345 bar. This makes the IAP05S pressure transmitter somewhat less accurate than its bigger brothers, but also a lot cheaper. For less demanding app...

The IAP10S series is a very robust and advanced pressure transmitter within the Schneider Electric range and is SIL2 certified as standard. The IAP10S measures an absolute pressure with an accuracy of 0.05% of the reading. Thanks to the special FoxCal technology, one transmitter has no less than 11 calibration curves in a pressure range of 0-414 bar. This allows the same model of pressure trans...

The IAP50S series is a very robust and extremely accurate pressure transmitter within the Schneider Electric range and is SIL2 certified as standard. The IAP50S measures an absolute pressure with an accuracy of 0.025% of the reading. Thanks to the special FoxCal technology, one transmitter has no less than 11 calibration curves in a pressure range of 0-414 bar. This allows the same model IAP50S...

The IDP05S series is a budget-friendly differential pressure transmitter within the Schneider Electric range with standard SIL2 certification. The IDP05S measures a pressure difference with an accuracy of 0.075% of the chosen measuring range, ranging from 50 kPa to 207 bar. This makes the IDP05S differential pressure transmitter less accurate than its bigger brothers, but also a lot cheaper. Fo...

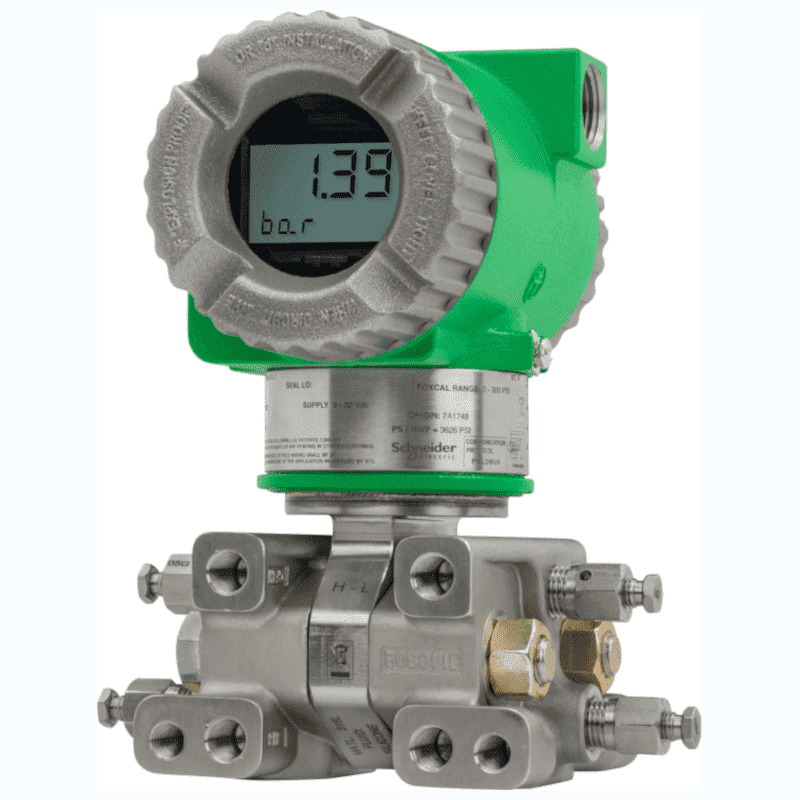

The IDP10S series is a very robust and advanced differential pressure transmitter within the Schneider Electric range and is SIL2 certified as standard. The IDP10S measures a pressure difference with an accuracy of 0.05% of the reading. Thanks to the special FoxCal technology, one transmitter has no less than 11 calibration curves in a pressure range of 0-414 bar. This allows the same model of...

The IDP50S series is a very robust and extremely accurate differential pressure transmitter within the Schneider Electric range and is SIL2 certified as standard. The IDP50S measures a pressure difference with an accuracy of 0.025% of the reading. Thanks to the special FoxCal technology, one transmitter has no less than 11 calibration curves in a pressure range of 0-414 bar. This allows the sam...

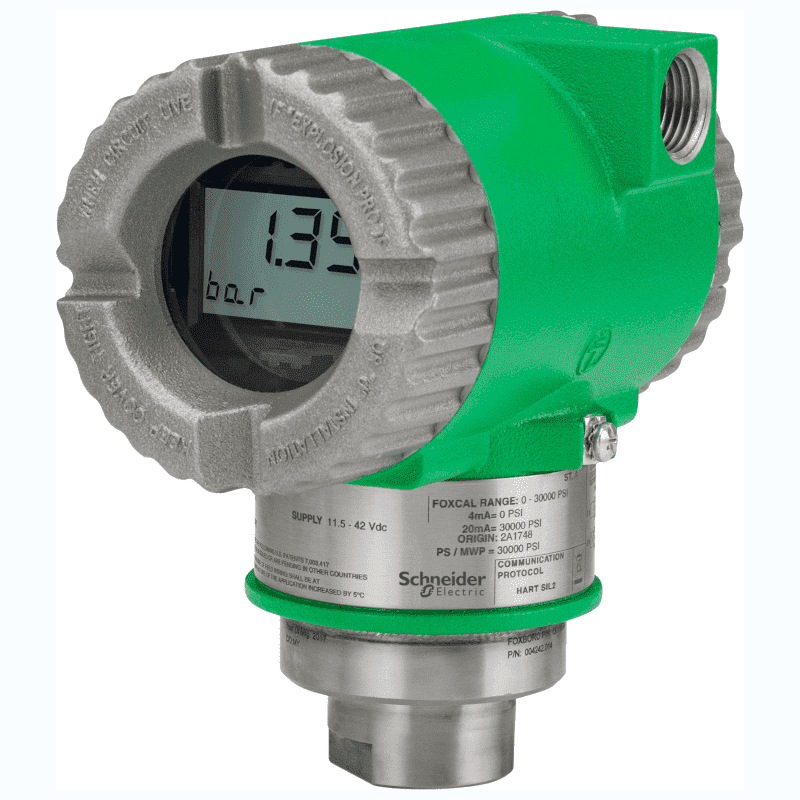

The IGP05S series is a budget-friendly pressure transmitter within the Schneider Electric range and is standard SIL2 certified. The IGP05S measures a relative pressure with an accuracy of 0.075% of the selected measuring range, ranging from 50 kPa to 345 bar. This makes the IGP05S pressure transmitter less accurate than its bigger brothers, but also a lot cheaper. For less demanding application...

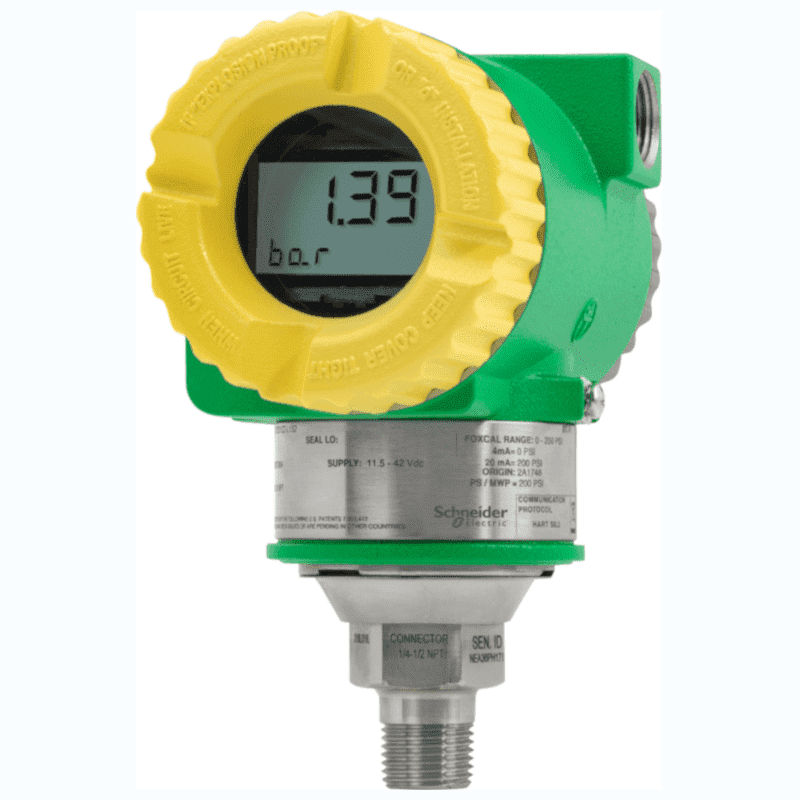

The IGP10S series is a very robust and advanced pressure transmitter within the Schneider Electric range and is SIL2 certified as standard. The IGP10S measures a relative pressure with an accuracy of 0.05% of the reading. Thanks to the special FoxCal technology, one transmitter has no less than 11 calibration curves in a pressure range of 0-414 bar. This allows the same model of pressure transm...

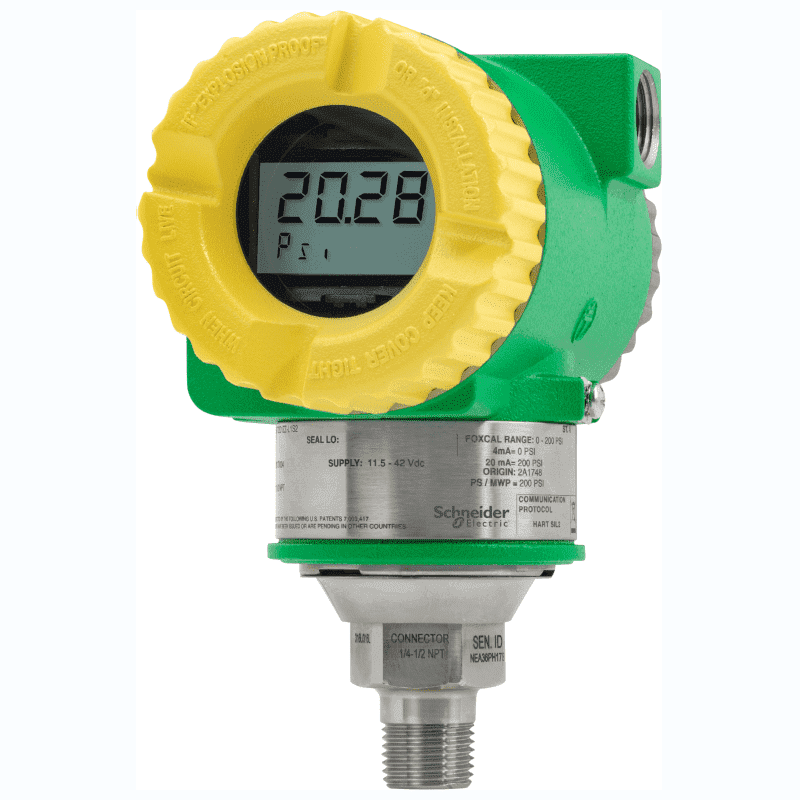

The IGP50S series is a very robust and extremely accurate gauge pressure transmitter within the Schneider Electric range and is SIL2 certified as standard. The IGP50S measures a relative pressure with an accuracy of 0.025% of the reading. Thanks to the special FoxCal technology, one transmitter has no less than 11 calibration curves in a pressure range of 0-414 bar. This allows the same model...

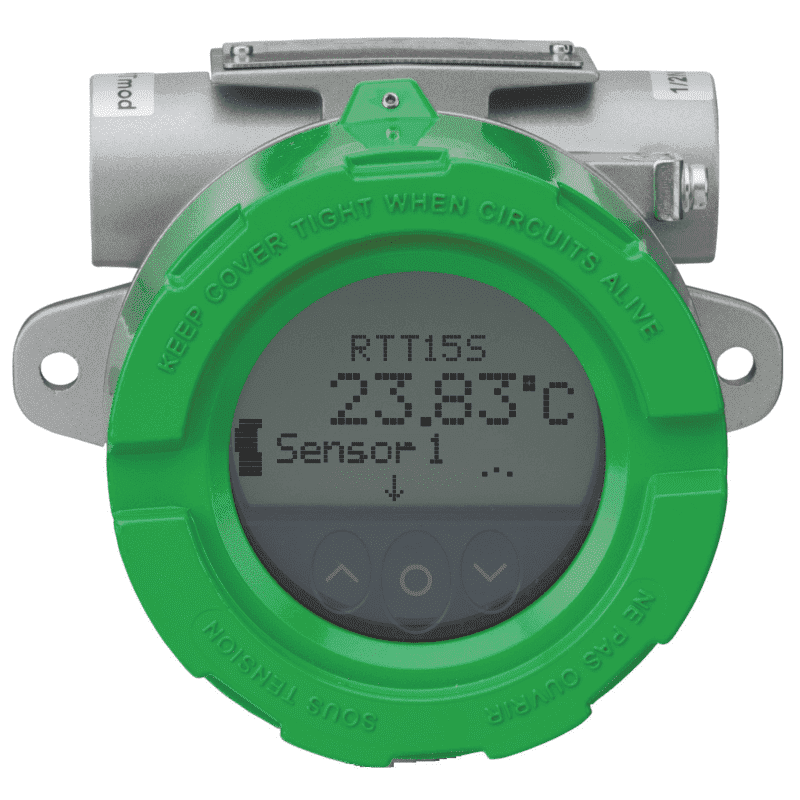

The Foxboro RTT15S temperature transmitter is a temperature transmitter that uses HART communication. The RTT15S is available with many types of housing, sensor types and many other options making it suitable for most temperature applications. The transmitter can be configured without interrupting the process. The optional display has a red or white backlight. The display can also be used for d...

The CFS400A has been developed to meet the demanding custody transfer requirements of the oil and gas industry and is well suited to bulk measurement in many applications. The option of Super Duplex (UNS S32760) provides a maximum operating pressure of 180 barg. A high level of performance makes the CFS400A suitable for the bulk measurement of petroleum and oil as well as products like syrup, m...

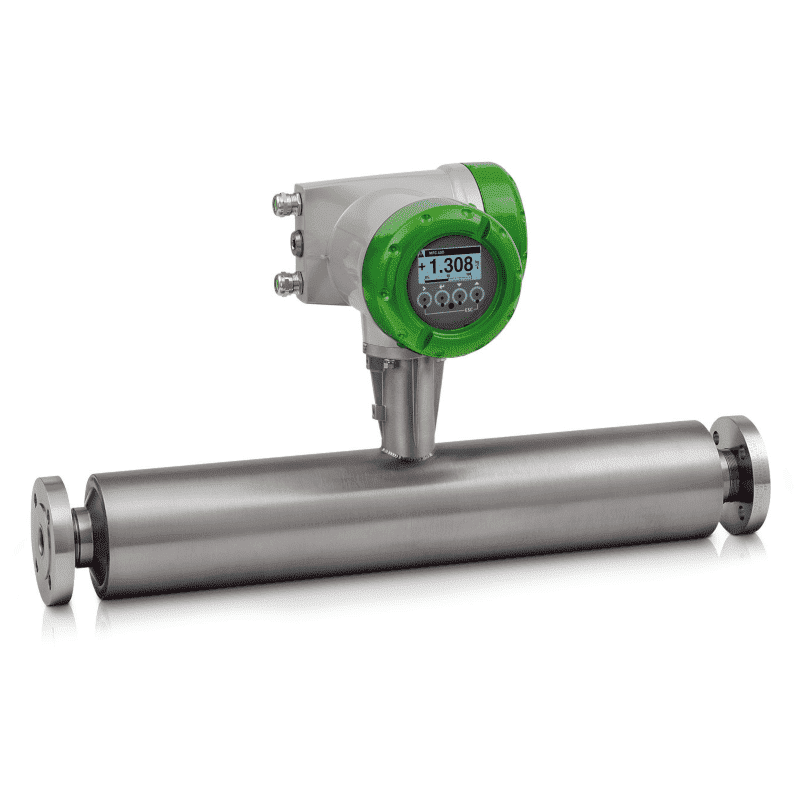

The CFS700A is the only sensor for mass flow with a single straight measuring tube that is available in Titanium, Stainless Steel, Hastelloy® or Tantalum. Single straight tube without flow splitter for lowest pressure drop, for advanced applications and harsh environments. End connections available for ½” (DN15) to 4” (DN100).

The CFT34A Coriolis mass flow transmitter will provide the highest performance possible across a wide range of applications. For the measurement of liquids or gases, cryogenic to high temperature fluids, single or multi-phase fluids and advanced digital signal processing techniques is used to give accurate measurements of mass flow, density and temperature. It is developed according to IEC 615...

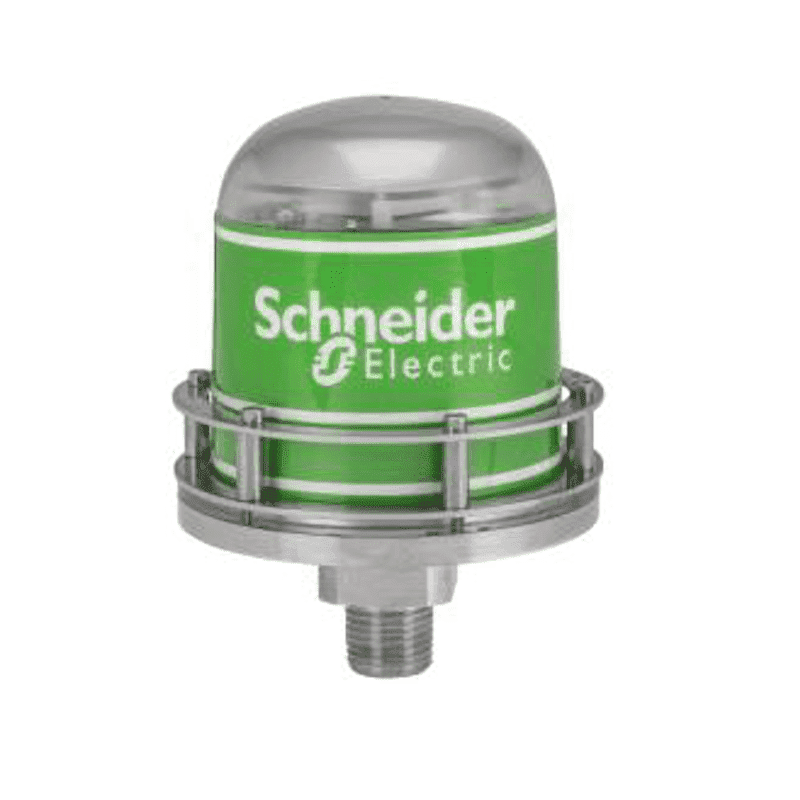

The wireless WAP10 absolute pressure sensors measure the pressure of various industrial processes and transmit them wirelessly to a central collector (WCC10). This sends the values from multiple sensors via WirelessHART to any central system. There are versions with pressure ranges up to 2.1 bar absolute. The field sensors are explosion-proof according to ATEX and Canadian and American guidelines.

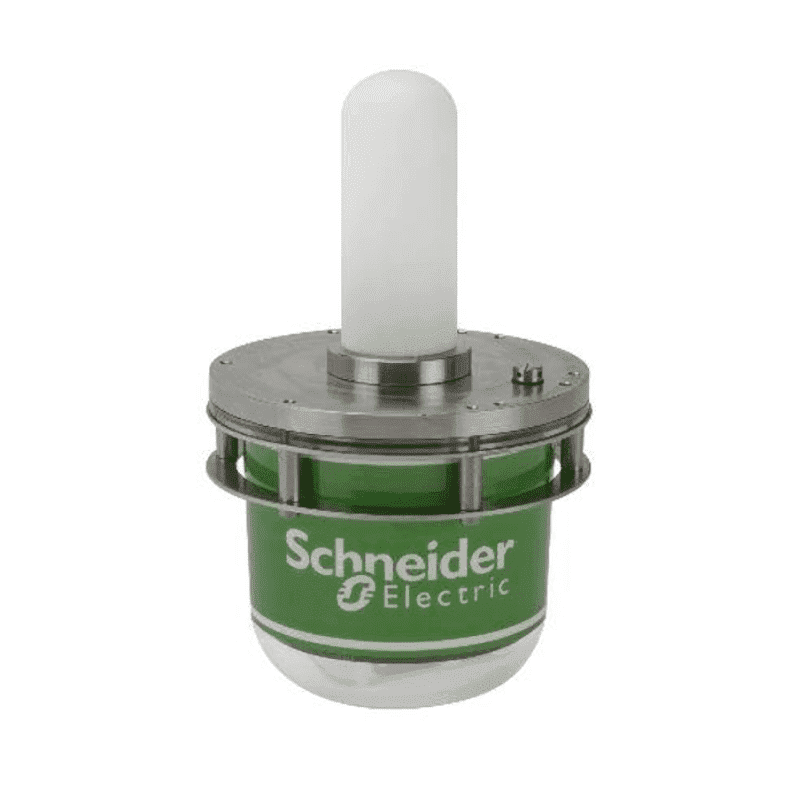

With the WCC10 central collector from Schneider Electric, the data from 8 wireless IAN field sensors can be collected. There are field sensors for measuring temperature, pressure and differential pressure. Communication between the field sensors and the WCC10 is via Bluetooth and can be fully configured with an app via WiFi. This makes the system very flexible and very easy to install. In addit...

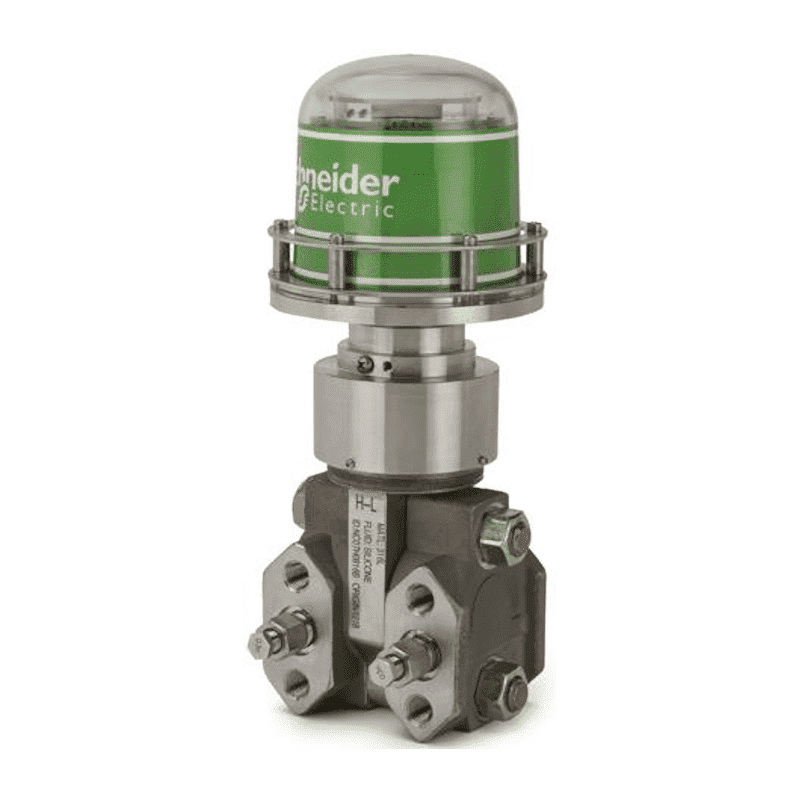

The wireless WDP10 differential pressure sensors measure the differential pressure of various industrial processes and transmit them wirelessly to a central collector (WCC10). This sends the values from multiple sensors via WirelessHART to any central system. There are versions with differential pressure ranges up to 500 mbar, 2.1 bar or 21 bar. The field sensors are explosion-proof according t...

The wireless WGP10 relative pressure sensors measure the pressure of various industrial processes and transmit them wirelessly to a central collector (WCC10). This sends the values from multiple sensors via WirelessHART to any central system. There are versions with pressure ranges up to 2.1, 21 or 70 bar. The field sensors are explosion-proof according to ATEX and Canadian and American guideli...

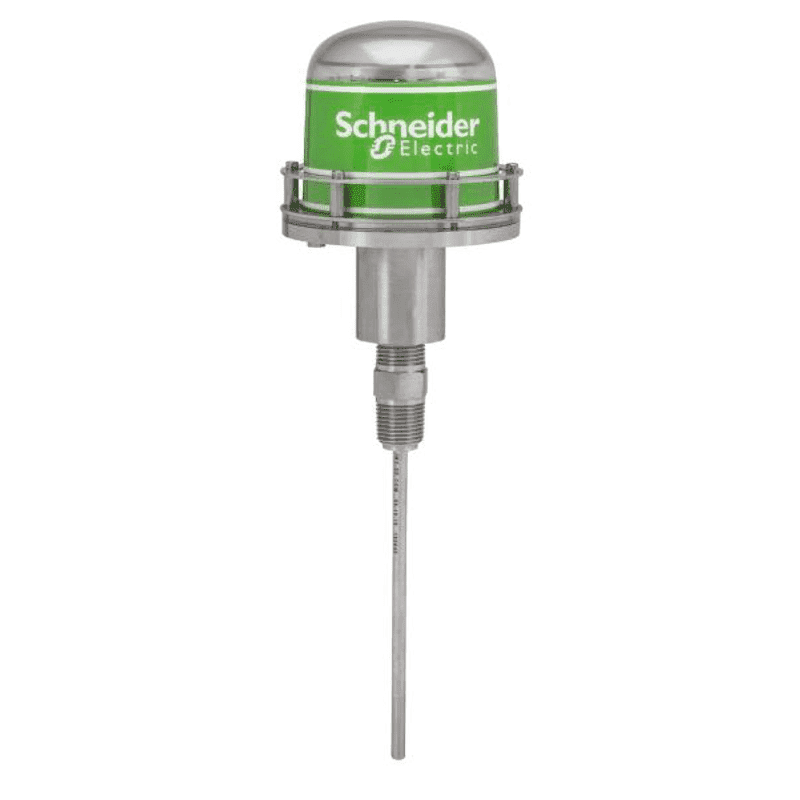

The wireless WRT10 temperature sensors measure the temperature of various industrial processes and send them wirelessly to a central collector (WCC10). This sends the values from multiple sensors via WirelessHART to any central system. There are RTD and thermocouple versions from -200 to + 885 ° C with various insertion lengths between 50 and 400 mm. Optionally, thermowells in various lengths c...

The Schneider Electric 8400A magnetic flow tube, in combination with the IMT series transmitters, forms an economical flow meter with wafer connection. The 8400A magnetic flow meters are available in sizes from DN10 to DN150 for light industrial applications at a competitive price. For higher accuracy and chemical resistance, we recommend the 8500A series.

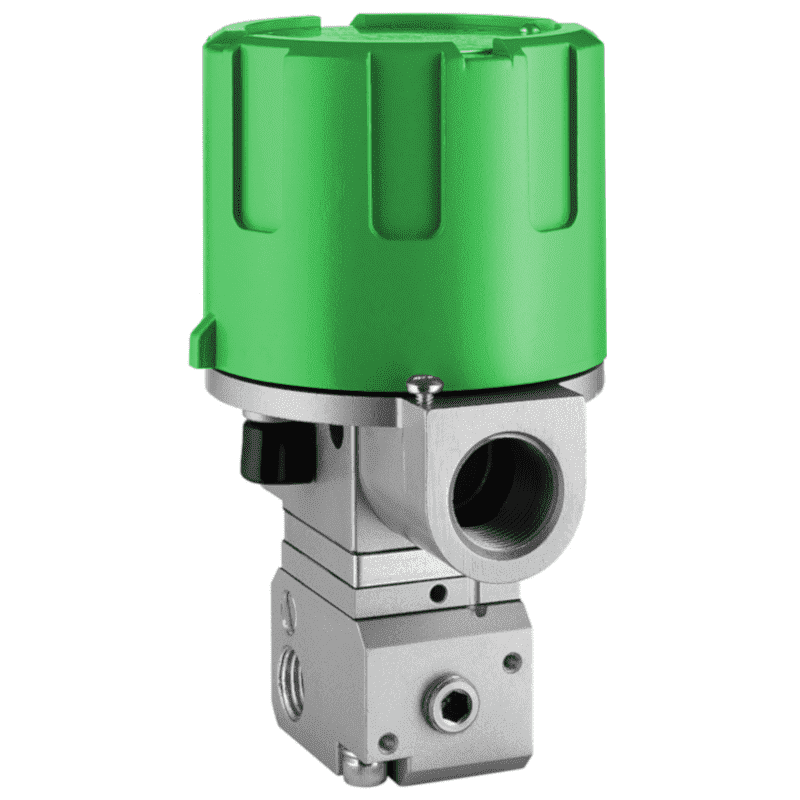

The IP26 (current to pressure) transducer converts a 4–20mA electrical current signal to a proportional linear pneumatic output. The unique conversion technology provides a high level of accuracy and repeatability for the operation of actuated valves. A low mass control circuit provides consistent output in high vibration applications. This compact unit is housed in an explosion proof enclosure...

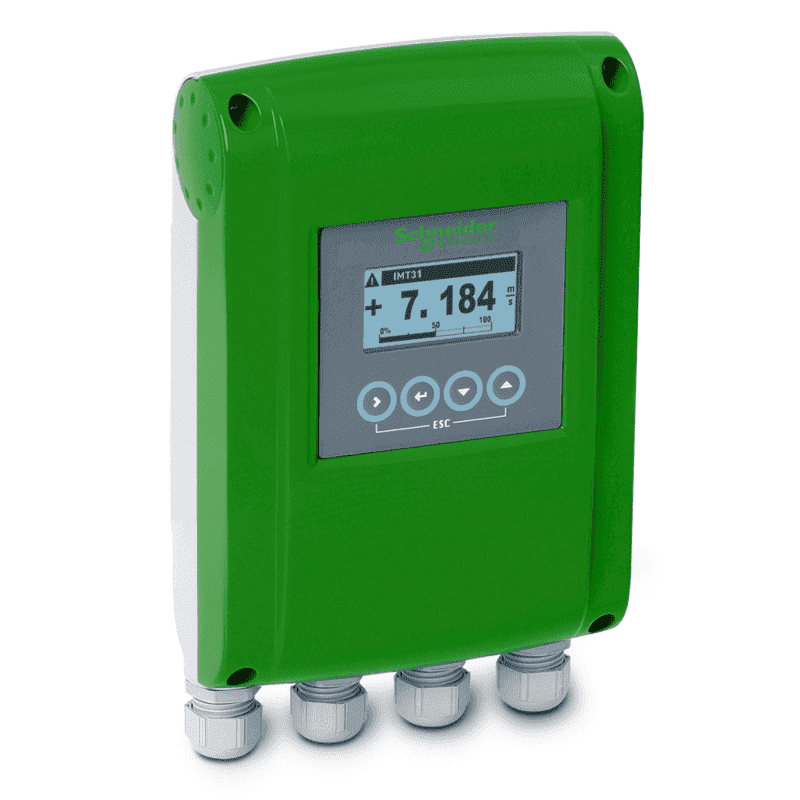

De Schneider Electric IMT33A is een explosieveilige flowtransmitter voor gebruikt met de 9500A, 9600A en 9700A serie magnetische flowbuizen. De IMT33A vormt het signaal van een magnetische flowbuis om naar een 4-20mA, Hart, Modbus, puls of Foundation Fieldbus. De IMT33A is geschikt voor explosieveilige zones (Ex d) volgens ATEX, IECex, FM en CSA.

De Schneider Electric IMT31A is een flowtransmitter voor gebruikt met magnetische flowbuizen,zoals de 8400A, 8500A, 9500A, 9600A en 9700A serie. De IMT31A vormt het signaal van een magnetische flowbuis om naar een 4-20mA, Hart, Modbus, Foundation Fieldbus, of Profibus PA en DP. De IMT31A is geschikt voor explosieveilige zones (Ex i) als deze wordt gecombineerd met de 9500A of 96700A flowbuizen.

The Schneider Electric RMU998 Remote Mounting Unit is the solution for series SRD998 and SRD991 valve actuators in extreme environments, such as very low or very high temperatures, high vibrations. The position of the actuator is determined by an external potentiometer in the RMU998, which passes the signal to the positioner mounted in another protected environment.

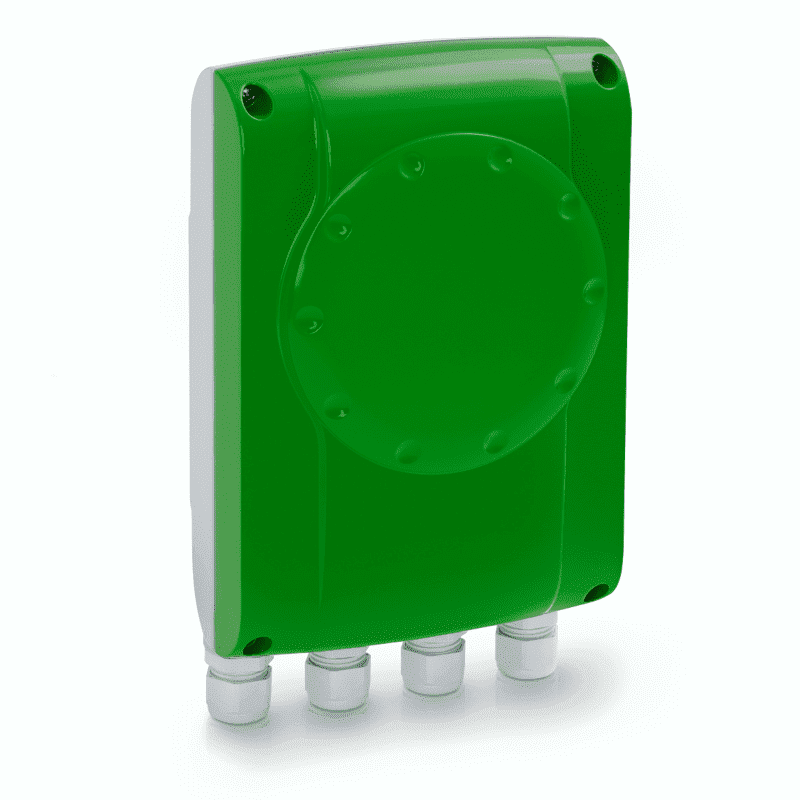

De Schneider Electric IMT30A is een flowtransmitter voor gebruikt met magnetische flowbuizen,zoals de 8400A, 8500A, 9500A, 9600A en 9700A serie. De IMT30A vormt het signaal van een magnetische flowbuis om naar een 4-20mA, Hart, Modbus of pulse-uitgang. De IMT30A is geschikt voor veilige zones en kan worden geleverd met of zonder display.

The 9600A series of magnetic flowmeters have been specially developed for use in the pharmaceutical and food industry. The 9600A series flowmeters are 3A, FDA and EHEDG certified for hygienic application, as well as ATEX, FM and CSA for explosion-proof application. The magnetic flow meters can communicate via Hart, Foundation Fieldbus or Modbus. Versions are available for pipe diameters from 2....

The Schneider Electric 9700A magnetic flow tube, in combination with the IMT series transmitters, forms a flow meter for chemical applications with a flanged connection. The 9700A magnetic flow meters are available in sizes from DN10 to DN2000 and are suitable for chemical and heavy industrial applications. Various lining and electrode materials are available to ensure optimal chemical resis...

The Schneider electric 6500W series is a battery-powered magnetic flow meter. This water meter has been developed for drinking water applications in remote locations where mains power is not available. Of course it is also suitable for other applications where battery power is useful. For locations with mains voltage, there is the FlexPower unit, with which the 6500W can also be connected to 23...

The Schneider electric 9500A series magnetic flow tube together with the IMT series transmitters form a reliable and universal flow meter with flange connection. The 9500A magnetic flow meters are available in sizes from DN25 to DN2000 suitable for drinking water, wastewater and light industrial applications. The 9500A series can also be used as a bidirectional flow meter. We recommend the 9700...

The Schneider Electric LR74 series consists of non-contact radar level meters for liquids. The LR74 series can detect levels in aggressive and corrosive liquids.

The Schneider Electric LR64 series consists of non-contact radar level meters for solids. The LR64 series can detect levels in solids from granules to stones.

The Schneider Electric LR65 series consists of non-contact radar level meters for solids. The LR65 series can detect level in solids from fines to powders.

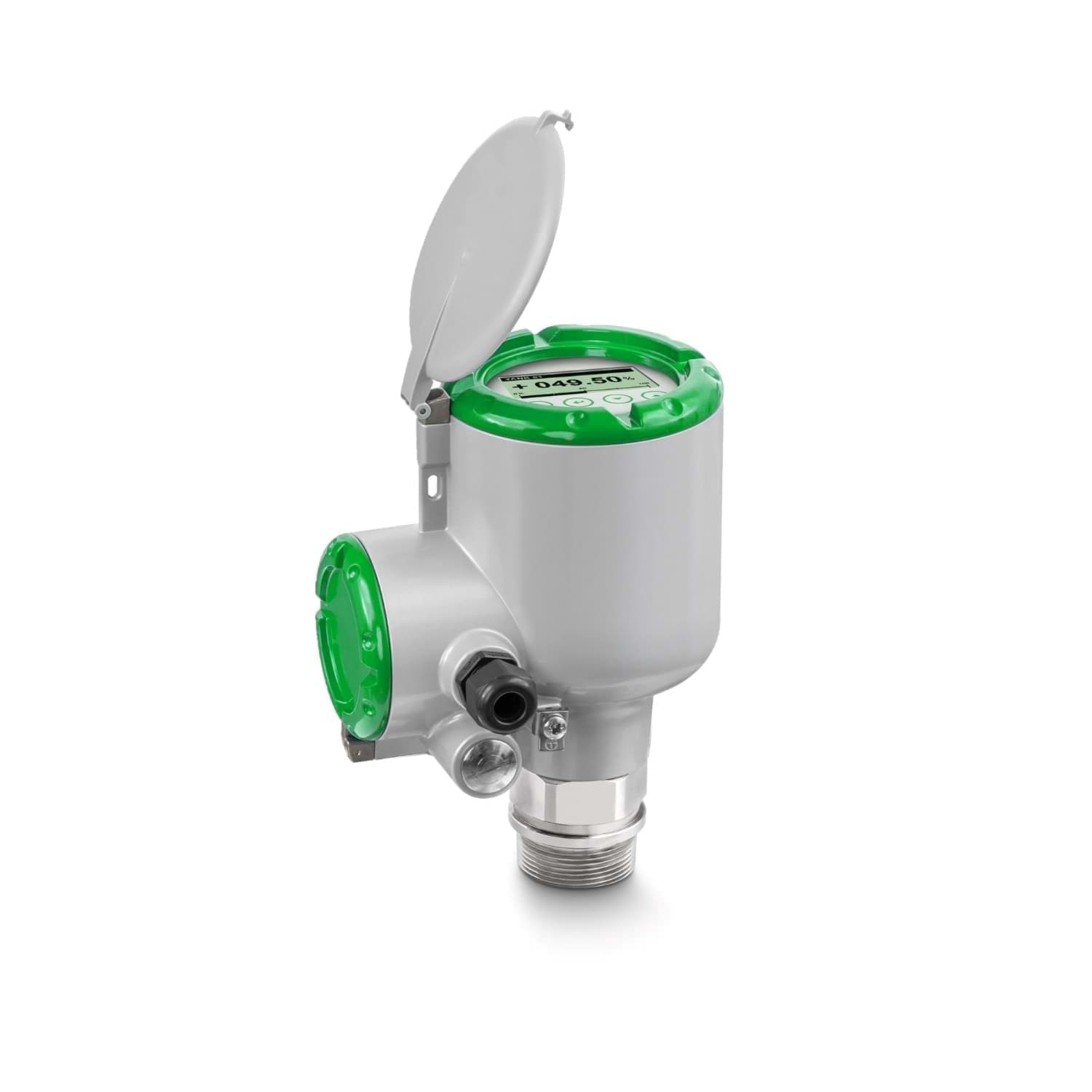

The Schneider Electric LR75 series consists of non-contact radar level meters for liquids. The LR75 series can detect level of liquids in narrow tanks with obstacles.

The Schneider Electric 8500A magnetic flow tube, in combination with the IMT series transmitters, forms a robust and reliable flow meter with a wafer connection. The 8500A magnetic flow meters are available in sizes from DN2.5 to DN100 for industrial applications requiring high accuracy. Various lining and electrode materials are available to ensure optimal chemical resistance.

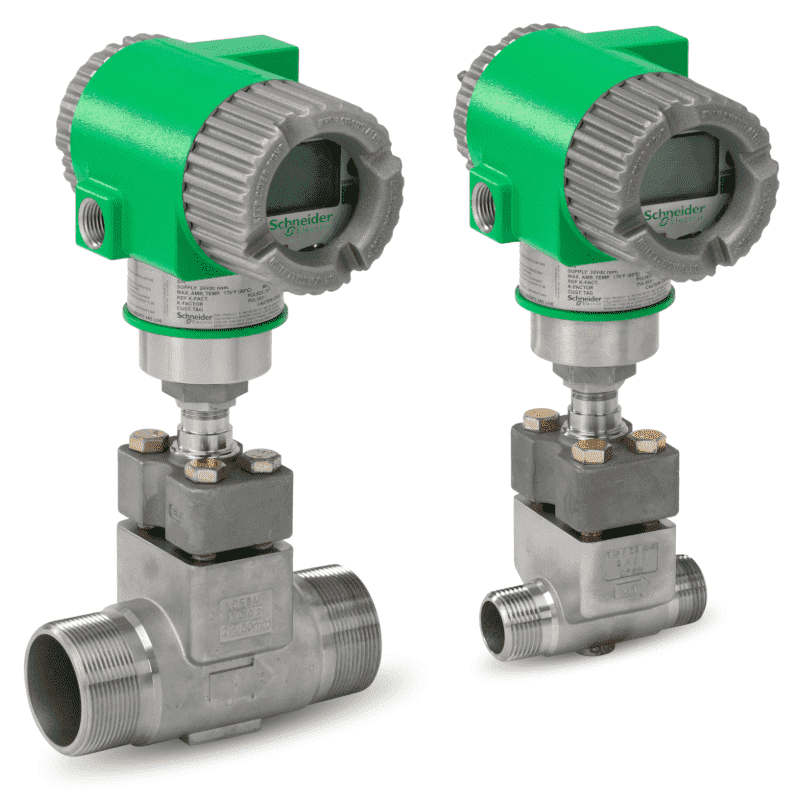

The 84CN series vortex mass flow meter with threaded connection complements Schneider Electric (formerly Foxboro) family of intelligent, powerful vortex flowmeters. The 84CN series is available with 4 to 20 mA, HART7 and or Modbus communication and can optionally be equipped with temperature compensation for mass flow measurement of saturated steam and liquids. In addition, the Foxboro 84CN fea...

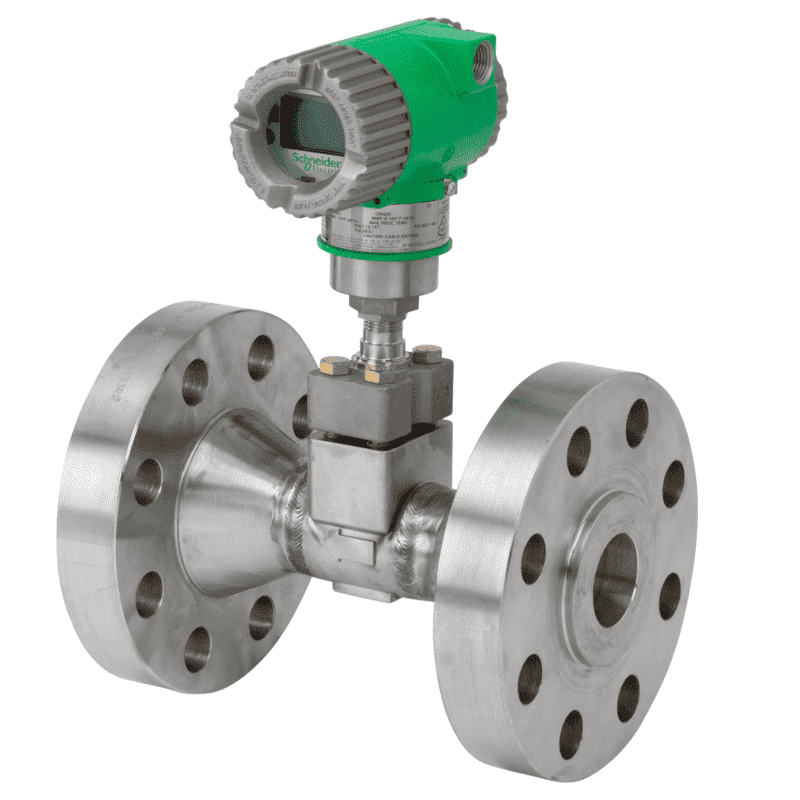

The 84CF series vortex mass flowmeter complements the Foxboro family of intelligent, powerful vortex flowmeters. The 84CF series is available with 4 to 20 mA, HART® 7 and pulse output and is equipped with temperature compensation for mass flow measurement of saturated steam (saturated steam) and liquids. In addition, the Foxboro 84CF has the patented Active Tuning technology that significantly...

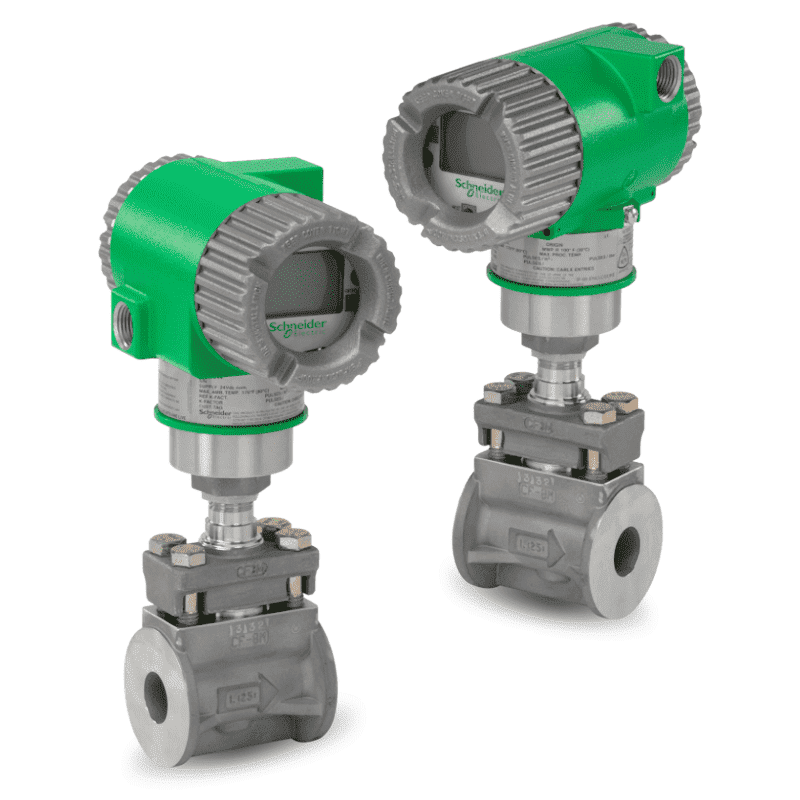

The 84CW series vortex mass flow meter with wafer connection is an addition to the Schneider Electric (formerly Foxboro) family of intelligent, high-performance vortex flow meters. The 84CW series is available with 4 to 20 mA, HART7, and/or Modbus communication and can optionally be equipped with temperature compensation for mass flow measurement of saturated steam and liquids. Additionally,...

The Foxboro IAP10 series is a compact and robust absolute pressure transmitter for direct process mounting. The IAP10 series is available in different measuring ranges of 2.1 bar, 21 bar and 210 bar absolute pressure. As signal output you can choose 1-5V, 4-20 mA, Hart, Foudation Fielbus and FoxCom. The IAP10 series is available in a safe area version or explosion-proof version according to ATE...

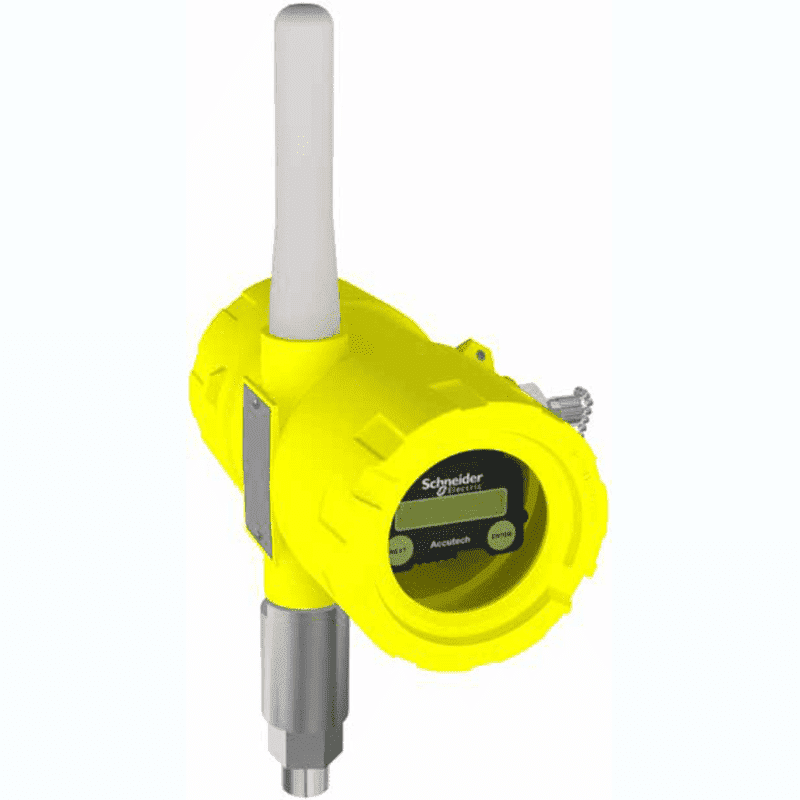

The Foboro Accutech series consists of these pressure transmitters. The GP10 is a wireless relative (guage) pressure transmitter for static pressure measurement with a range of 250 to 10,000 psig (17 - 690 Barg). The AP10 series is a wireless absolute pressure transmitter with a range of 30 to 250 psig (2 - 17 BarA). The Accutech transmitters communicate with the Accutech base station over dist...

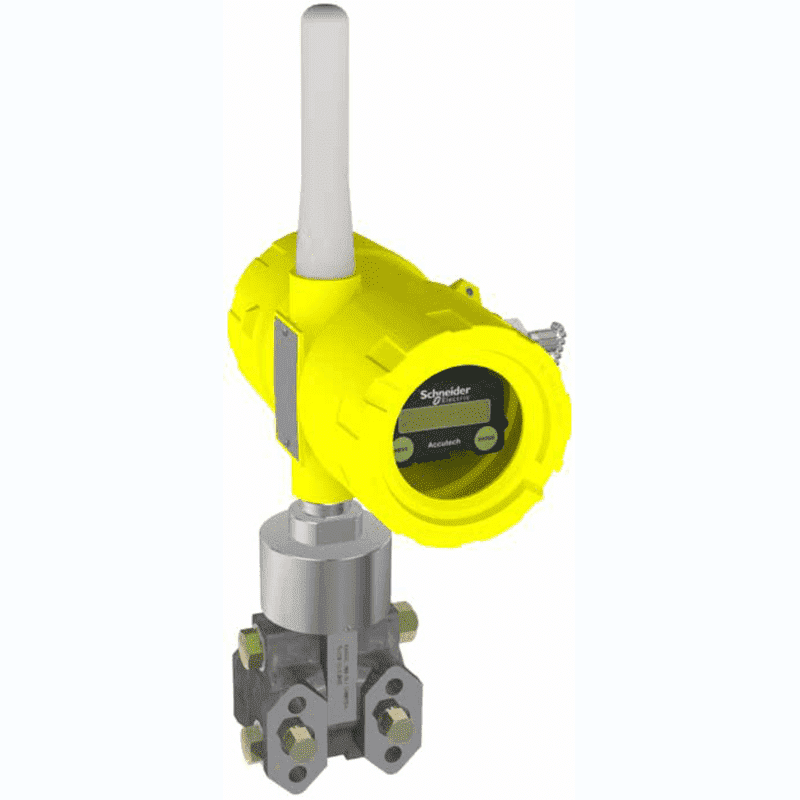

The Foxboro Accutech series includes these wireless differential pressure transmitters. The DP20 is a wireless differential pressure transmitter with ranges up to +/- 300in H20 (+/- 762mm H2O). The Accutech transmitters communicate with the Accutech base station over distances up to 48 km.

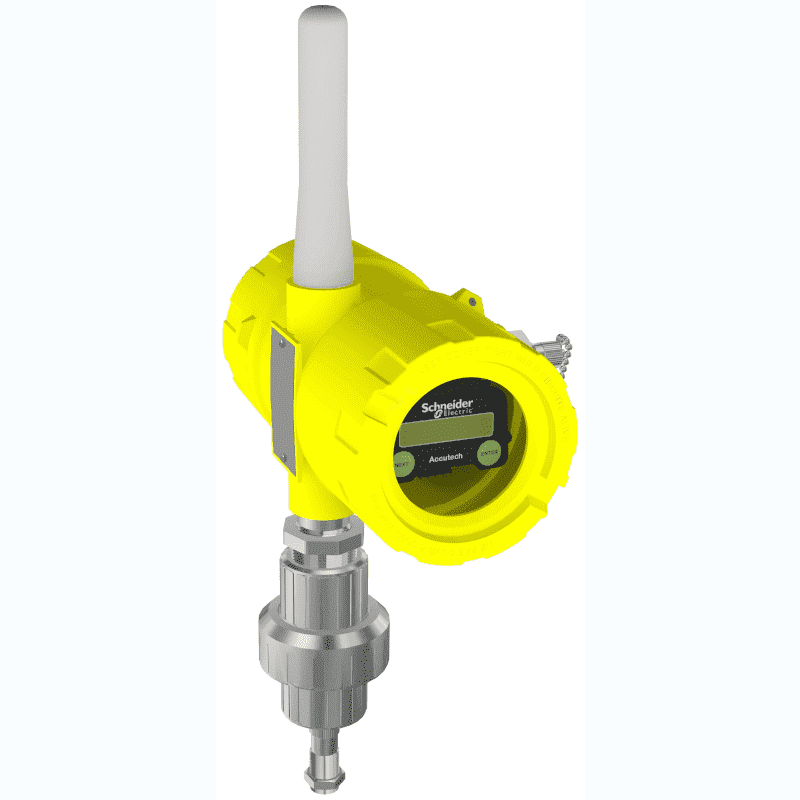

The TM10 is a wireless transmitter for turbine flowmeters (not included). The Accutech TM10 converts the pulse output of a turbine flowmeter into a current flow rate and also registers the total flow. The values from the wireless Accutech transmitters can be transmitted over distances of up to 1000 meters in open field conditions. The TM10 transmitter features a rugged explosion-proof housin...

De AI10 en AV10 zijn universele draadloze transmitters voor analoge 4-20 mA en 0-10V signalen. De Accutech AI10 heeft twee 4-20 mA ingangen en de AV10 heeft twee 0-10V ingangen. Daarnaast hebben beide uitvoeringen twee contactingangen. De waardes van de draadloze Accutech transmitters kunnen over afstanden tot wel 1000 meter in het vrije veld worden gecommuniceerd. De TM10 transmiiter heeft een...

The LevelWave LR01 is designed to perform continuous level measurement in a wide range of industries and applications. Foxboro is known for more than 50 years of experience in level measurement as a leading supplier of extremely robust, durable and reliable level measurements. Unaffected by changes in temperature, specific gravity, pressure and with no need to recalibrate, offering a highly ava...

The Foxboro CFT51 series digital Coriolis Mass Flow and Density Transmitter is an improvement of the CFT50 flow meters that introduced a completely new technology in the field of coriolis flow measurement. In combination with a Foxboro CFS10 or CFS20 flow tubes, the CFT51 series forms a mass flow and density meter. The digital signal processing (DSP) offers improved flowmeter performance and ad...

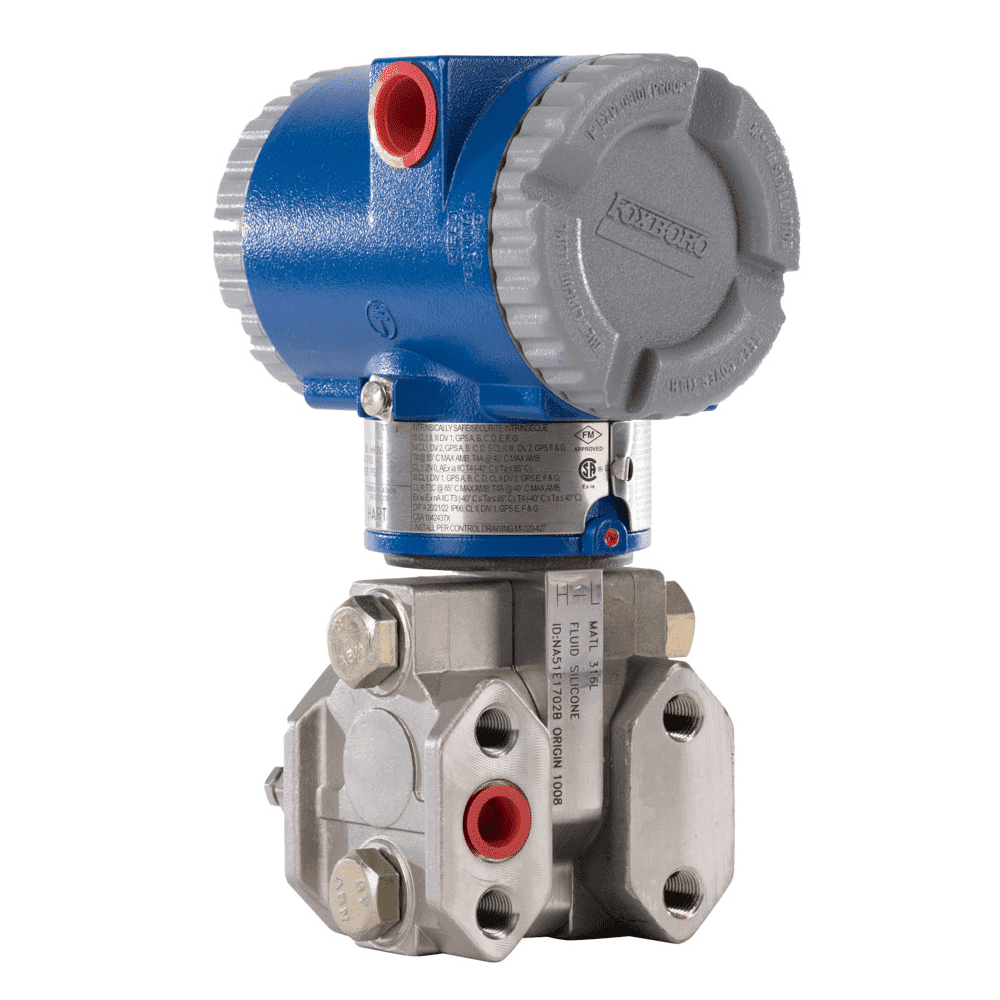

The Foxboro IDP10 series is a compact and robust differential pressure transmitter for direct process mounting. The IDP10 series is available in different measuring ranges of 75 mbar, 500 mbar, 2.1 bar, 21 bar and 210 bar differential pressure. As signal output you can choose 1-5V, 4-20 mA, Hart, Foudation Fielbus and FoxCom. The IDP10 series can be designed as a differential pressure transmitt...
