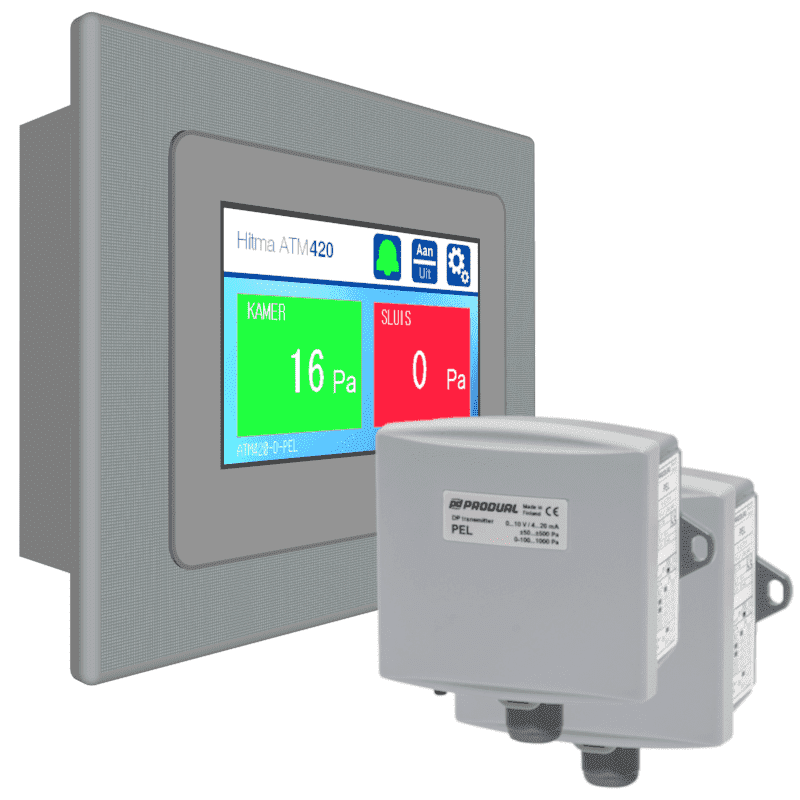

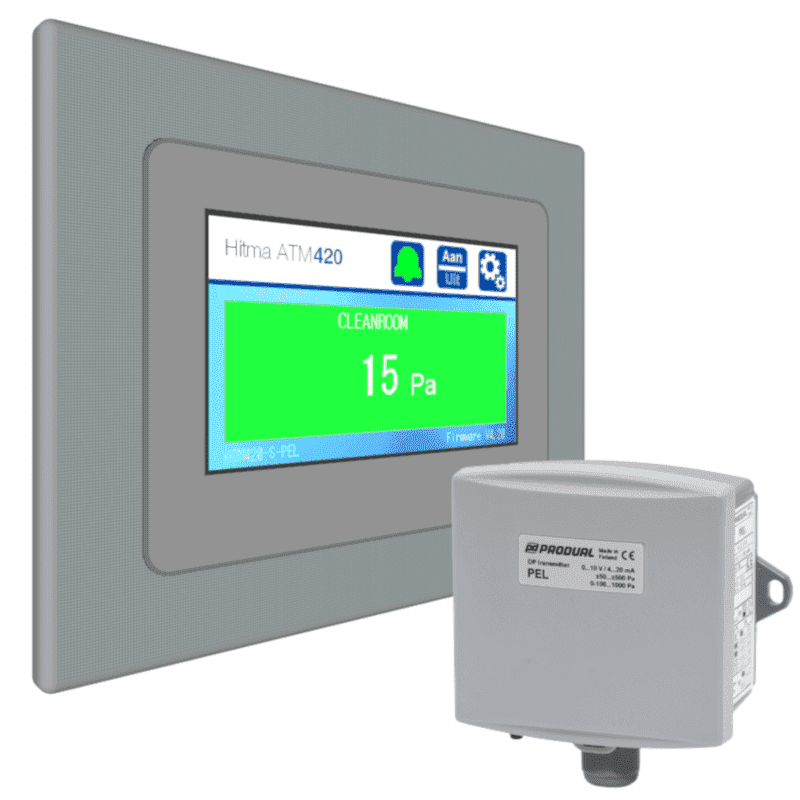

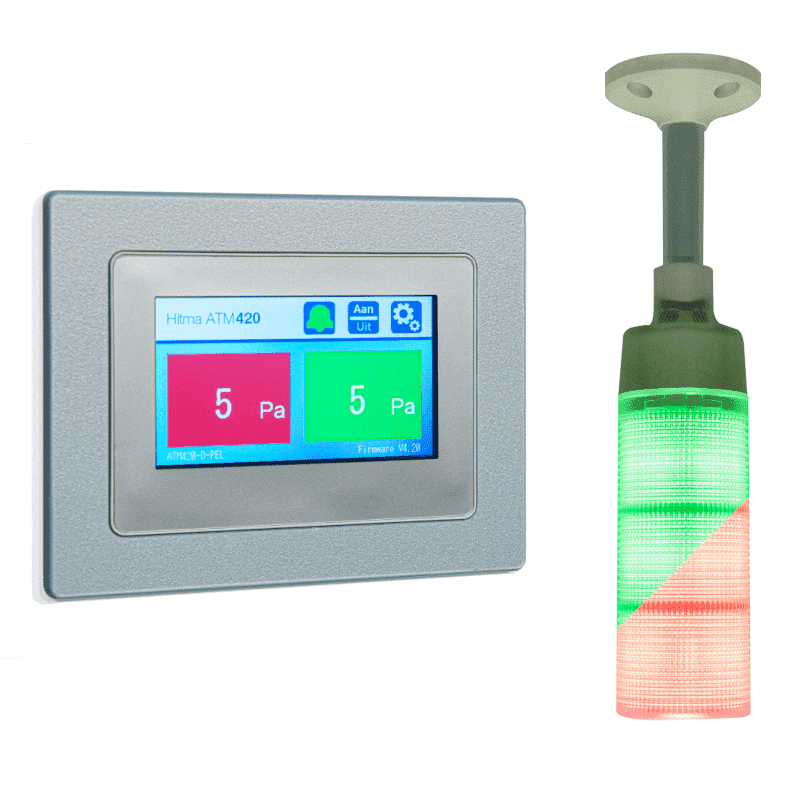

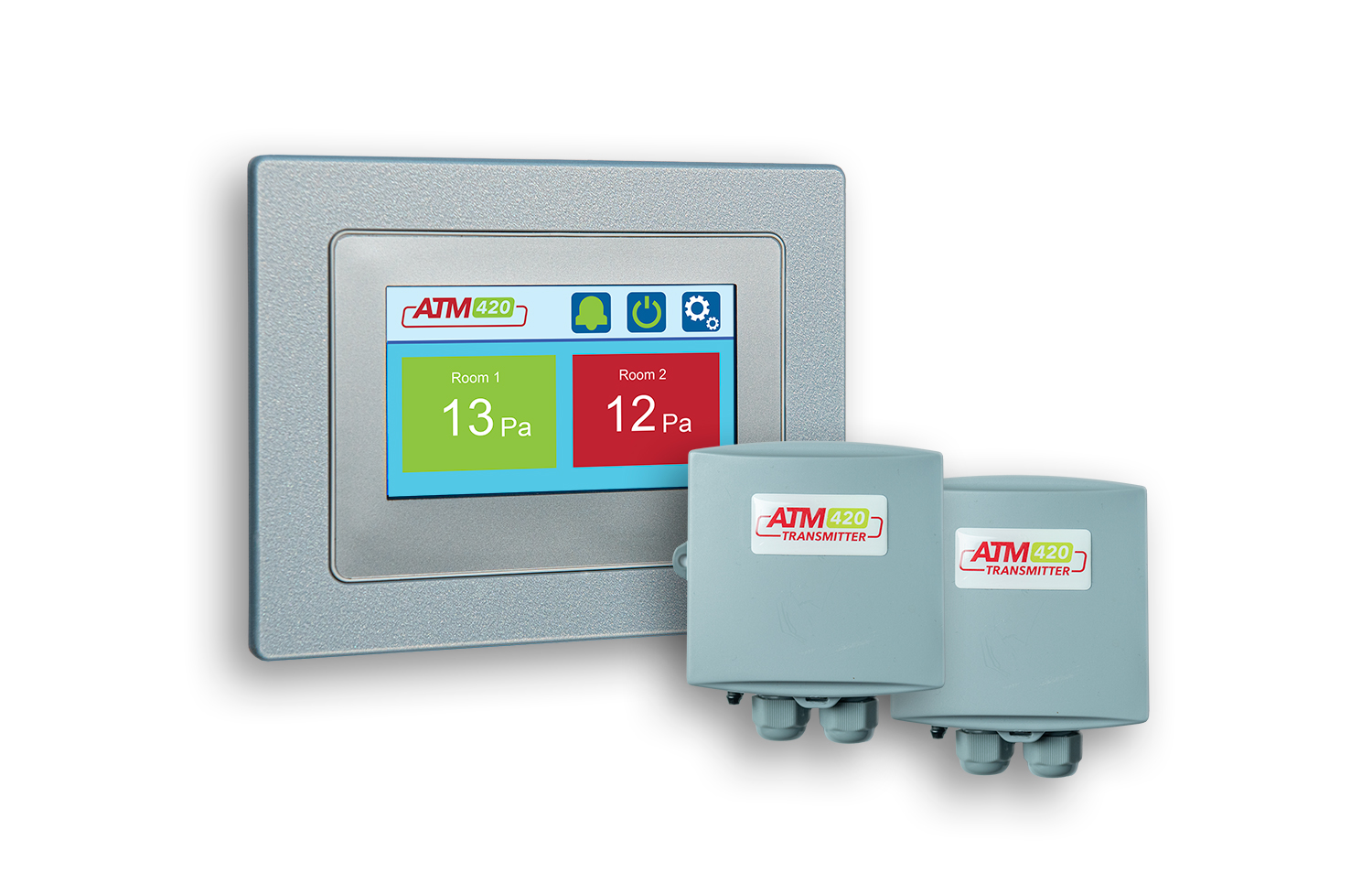

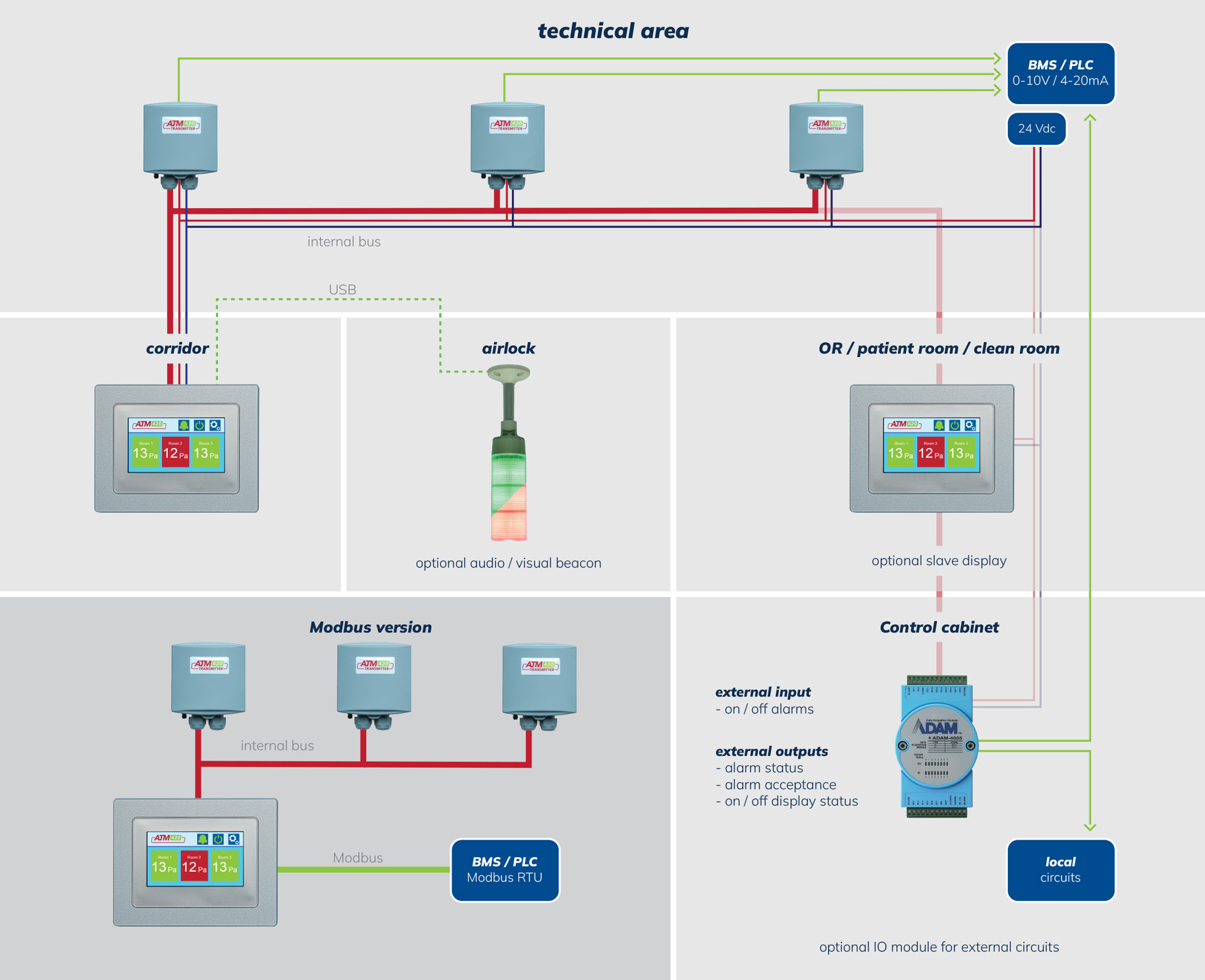

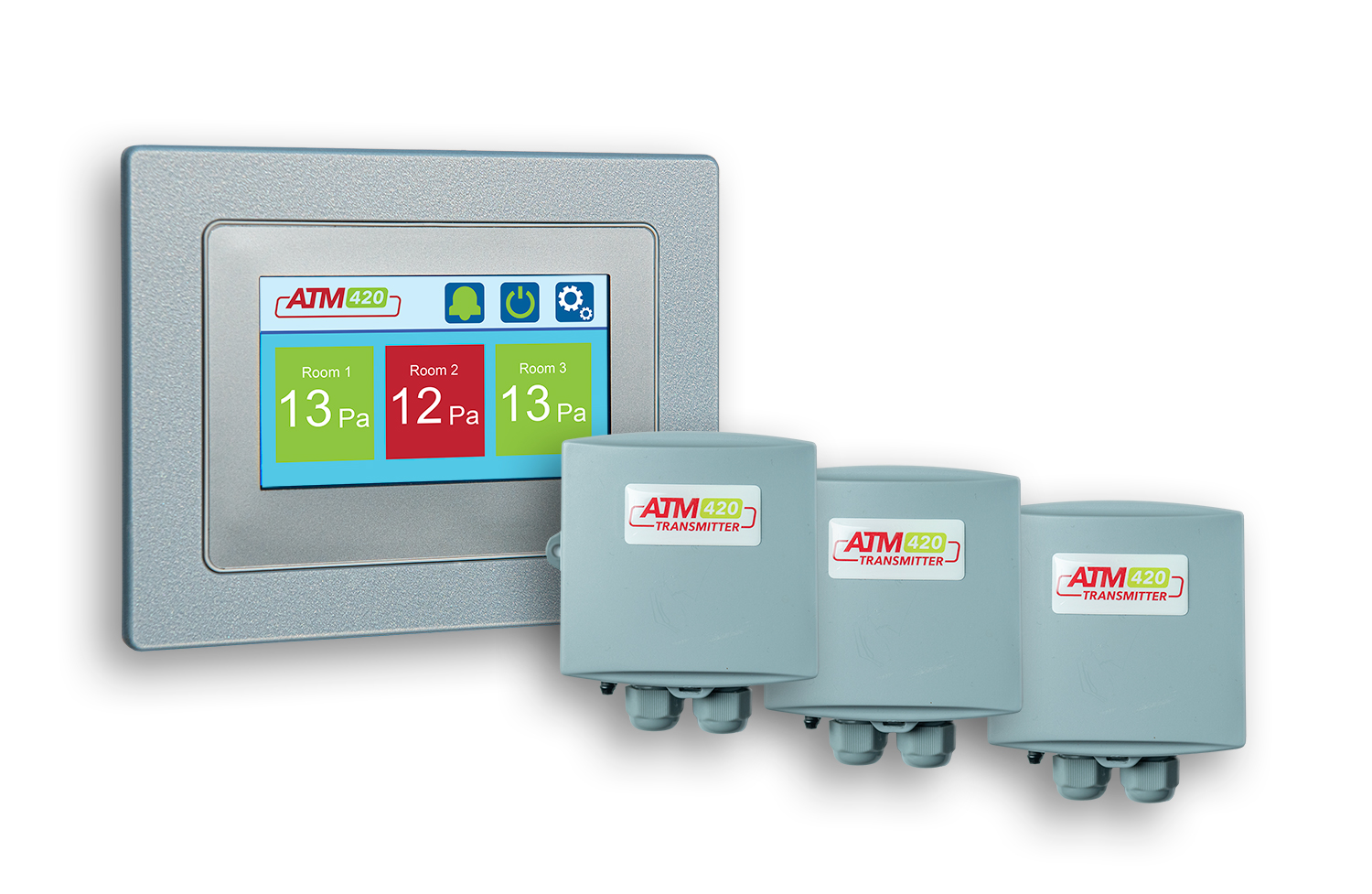

The ATM420 is a touchscreen display that is designed as audiovisual room pressure monitoring in clean rooms, operating rooms or isolation rooms. The display provides visual monitoring that functions as a traffic light. If the pressure difference is correct, the entire display will turn green and outside the desired values the display will turn red. In addition, the display has a built-in acoustic alarm with adjustable delay and acceptance function. The ATM420 can monitor one or two separate pressure differences, so that an air lock and a clean room can be monitored simultaneously with one display. The alarm can be deactivated for cleaning or maintenance, for example.
Medium | Air |
Output |
|
Digital communication | Modbus RTU (optional) |
Power supply | 24 Vdc |
Process connection | 5 mm tubing |
Display | Touchscreen |
Measuring principle | Piëzo with auto-zero |
Housing | IP65 front |
There are no reviews yet
Product datasheet ATM420_2021_NL.pdf
Installatiehandleiding ATM420
Gebruikershandleiding ATM420
Product datasheet ATM420_2021_EN.pdf
User manual ATM420 V4.21 English
Installation manual ATM420 V4.21 English.pdf
Fiche technique ATM420_2022 FR .pdf
