ANB-TRCP wireless NB-IoT data logger for temperature, RH, CO2, and atmospheric pressure

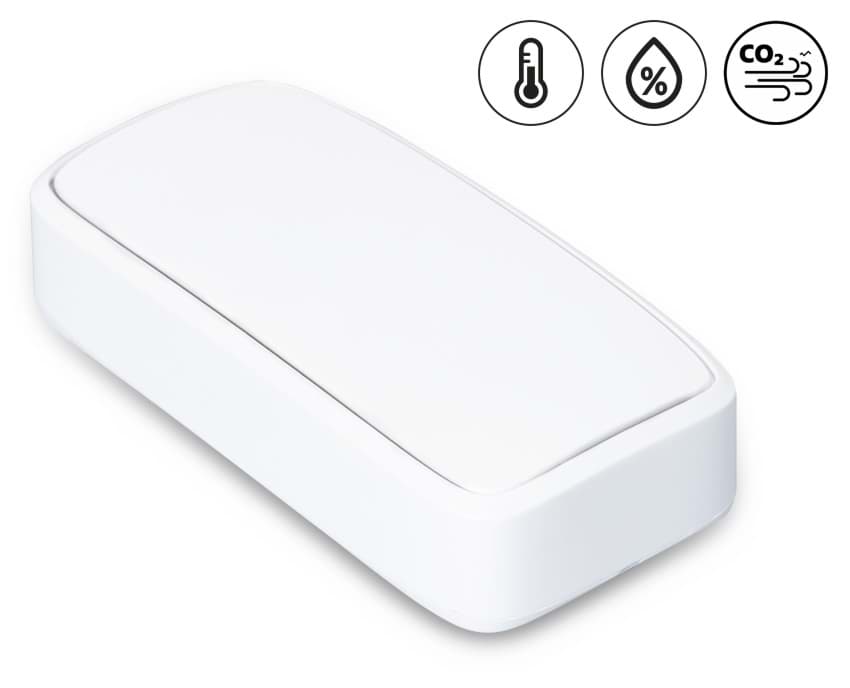

Picture of ANB-TRCP wireless NB-IoT data logger for temperature, RH, CO2, and atmospheric pressure
Picture of ANB-TRCP wireless NB-IoT data logger for temperature, RH, CO2, and atmospheric pressure

ANB-TRCP wireless NB-IoT data logger for temperature, RH, CO2, and atmospheric pressure

SKU ANB-TRCP

Discover the power of this advanced data logger with NB-IoT communication – the ultimate solution for wireless and reliable data monitoring.

  • Internal sensors for temperature, relative humidity, CO2, and atmospheric pressure
  • Wireless & battery-powered: flexible placement, no wiring hassle
  • Communication via the mobile network with nationwide coverage: always and everywhere connected
  • Data retention during network outages: no data loss thanks to smart buffering and memory for up to 40,000 measurements
  • Integration with ATAL OnlineSensor software: for 24/7 online measurement, recording, analysis, alarming, and reporting
  • Wireless NB-IoT communication
Compare
Questions?
Email a friend

ANB-TRCP

SKU 8008799
Login for prices or  request an account

24/7 online monitoring, toegang tot meetdata en beheer van dataloggers en sensoren via Onlinesensor.nl

OnlineSensor 36 mnd
Download brochure
ANB-TRCP datasheet
ANB-TRCP datasheet
  • DescriptionANB-TRCP - Innovative data logger with NB-IoT communication and internal sensors for temperature, relative humidity, CO2, and atmospheric pressureDiscover the power of this advanced data logger with NB-IoT communication – the ultimate solution for wireless and reliable data monitoring. Thanks to...
  • Features
  • Documents
Close

ANB-TRCP - Innovative data logger with NB-IoT communication and internal sensors for temperature, relative humidity, CO2, and atmospheric pressure

Discover the power of this advanced data logger with NB-IoT communication – the ultimate solution for wireless and reliable data monitoring. Thanks to its battery-powered technology and smart data buffering, your system remains operational even during network outages.

Features & benefits:

  • Internal sensors for temperature, relative humidity, CO2, and atmospheric pressure
  • Wireless & battery-powered: flexible placement, no wiring hassle
  • Communication via the mobile network with nationwide coverage: always and everywhere connected
  • Data retention during network outages: no data loss thanks to smart buffering and memory for up to 40,000 measurements
  • Integration with ATAL OnlineSensor software: for 24/7 online measurement, recording, analysis, alarming, and reporting
  • Wireless NB-IoT communication

This data logger is ideal for a wide range of applications, such as:

  • Monitoring temperature in refrigerators and freezers, or during the transport of medicines, vaccines, or food
  • Monitoring pressure fluctuations in HVAC systems
  • Continuous water monitoring for legionella prevention
  • Monitoring indoor climate and environmental conditions in offices, schools, production environments, data centers, and logistics hubs

Choose innovation and reliability. With this NB-IoT data logger and the powerful capabilities of the OnlineSensor monitoring software, you always have control over your data, wherever you are.

Metingen
  • Temperatuur
  • Relatieve vochtigheid
  • CO2
  • Atmosferische druk
Bereik temperatuur -15°C tot +70°C
Bereik relatieve vochtigheid 0 tot 99% RV
Bereik CO2 400 tot 5.000 ppm
Bereik atmosferische druk 300 tot 1.100 hPa
Nauwkeurigheid
  • Temp: ±0,4°C
  • RV: ±3% RV (van 0 tot 80% RV)
  • CO2 ± 40 ppm +5% van de meetwaarde
  • Atm druk: ±3 hPa tussen 0°C en 65°C
Resolutie
  • 0,1°C
  • 1% RV
  • 1 ppm
  • 0,1 hPa
Voeding 3x batterij AA (6300 mAh)
Afmetingen 124mm x 60mm x 26mm
Gewicht 130g
Behuizing ABS kunststof
IP-klasse IP30
Geheugen 40.000 meetwaarden
Communicatie
  • Narrowband IoT (NB-IoT)
  • Bluetooth Low Energy (BLE)
Frequentiebereik
  • NB-IoT: B8 en B20 (op aanvraag: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66)
  • BLE: 2,4 GHz (frequentie radiomodule)
Zendvermogen
  • NB-IoT: 23 dBm ±2 dB
  • BLE: 2,5 mW (4 dBm)
Bereik BLE: 100m (LOS)
Protocol CoAP
Zendinterval Instelbaar van 1x per 5 minuten tot 1x per 10 dagen
Firmware updates
  • Over the Air (OTA) met deltamechanisme
  • Via Bluetooth Low Energy (BLE)
ANB-TRCP datasheet
