Milesight ATS201 LoRaWAN temperature sensor for harsh environments
Picture of Milesight ATS201 LoRaWAN temperature sensor for harsh environments
Picture of Milesight ATS201 LoRaWAN temperature sensor for harsh environments
Picture of Milesight ATS201 LoRaWAN temperature sensor for harsh environments
Picture of Milesight ATS201 LoRaWAN temperature sensor for harsh environments
Picture of Milesight ATS201 LoRaWAN temperature sensor for harsh environments
Picture of Milesight ATS201 LoRaWAN temperature sensor for harsh environments
Picture of Milesight ATS201 LoRaWAN temperature sensor for harsh environments
Picture of Milesight ATS201 LoRaWAN temperature sensor for harsh environments

Milesight ATS201 LoRaWAN temperature sensor for harsh environments

SKU 8007735

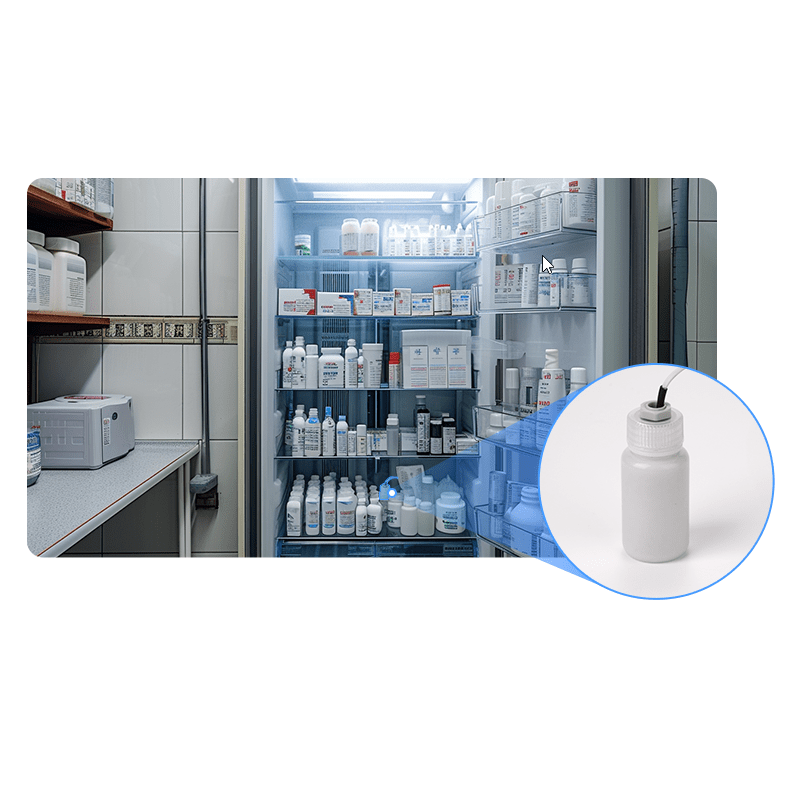

The ATS201 is widely used for temperature monitoring applications like cold chain storage of food or medicine.

  • Highly accurate and stable DS18B20 temperature sensor probe with high resolution

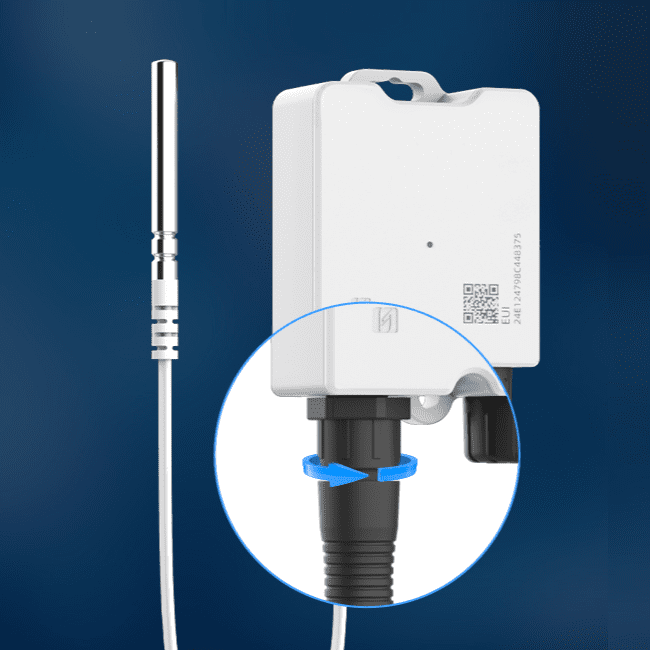

  • Temperature probe is detachable for self-calibration

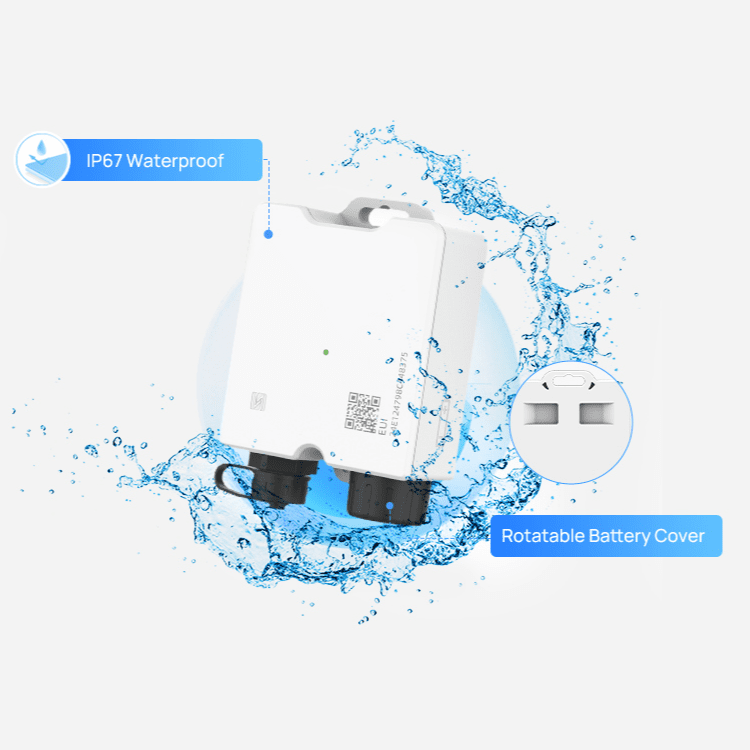

  • IP67 waterproof with specialized battery compartment design, making it suitable for harsh environments
  • Flexible design for various mounting options
  • EN12830 certified for cold-chain applications
  • Store up to 2,800 historical records locally and support retransmission to prevent data loss
  • Equipped with NFC for quick and easy configuration
  • Function effectively with standard LoRaWAN® gateways and network servers
  • Compatible with OnlineSensor temperature monitoring software
Compare
Questions?
Email a friend
This product is sold out.
Download brochure
Milesight ATS201 datasheet
Milesight ATS201 datasheet
Milesight ATS201 user manual
Milesight ATS201 user manual
  • DescriptionThe ATS201 is a compact temperature sensor. It is equipped with high-precision sensors and an IP67 waterproof design, making it applicable for accurate temperature data detection in various harsh environments. With the low power consumption technology, ATS201 can maintain a long operational life...
  • Features
  • Documents
Close

The ATS201 is a compact temperature sensor. It is equipped with high-precision sensors and an IP67 waterproof design, making it applicable for accurate temperature data detection in various harsh environments. With the low power consumption technology, ATS201 can maintain a long operational life with its internal battery. Combining with LoRaWAN® gateway and OnlineSensor IoT Cloud solution, users can manage all sensor data remotely and visually.

Features:

  • Highly accurate and stable DS18B20 temperature sensor probe with high resolution
  • Temperature probe is detachable for self-calibration
  • IP67 waterproof with specialized battery compartment design, making it suitable for harsh environments
  • Flexible design for various mounting options
  • EN12830 certified for cold-chain applications
  • Store up to 2,800 historical records locally and support retransmission to prevent data loss
  • Equipped with NFC for quick and easy configuration
  • Function effectively with standard LoRaWAN® gateways and network servers
  • Compatible with OnlineSensor temperature monitoring software

The ATS201 is widely used for temperature monitoring applications like cold chain storage of food or medicine.

Metingen Temperatuur
Type sensor Digitaal (DS18B20)
Type connector 5-pins M12 A-coded male connector
Kabellengte Lengte 1,5 meter, TPE
Communicatie LoRaWAN (OTAA/ABP klasse A)
Frequentiebereik 868MHz
Zendvermogen 16dBm
Gevoeligheid -137 dBm @300bps
Displaytype 1 LED (status indicator)
Configuratie Via APP of NFC
Certificeringen EN 12830
Geheugen 2.800 meetwaarden
Voedingstype 1 2700mAh ER14505 Li-SOCl2 batterij
Accu / Batterij levensduur
  • ±3 jaar (@25C, 10min interval, SF10)
  • ±9 jaar (@25C, 10min interval, SF7)
Bedrijfscondities
  • Temp: -30°C tot +55°C (meetunit)
  • Temp: -40°C tot +125°C (externe sensor)
  • RV: 0 tot 95% RV, niet condenserend
Afmetingen 85mm x 58mm x 25mm
Montage Op een wand (met schroeven, tie wraps of magnetisch)
Software of app OnlineSensor
IP-klasse IP67
Milesight ATS201 datasheet
Milesight ATS201 user manual
